• 2.54mm

    2.54mm

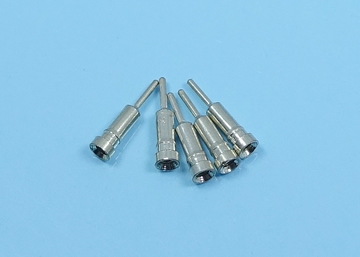

  • Machined Pin Terminal 4 Finger

    LSIP254-T Machined Pin Terminal 4 Finger

    Specifications


    Material

    • Pin (outer sleeve): Brass, machined, CuZn38pb2.
    • Tin plated: nickel/ 100~150u" Tin plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: nickel plated/ full Gold-flashed(0.4u"~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.


    Mechanical:

    • Average insertion force with steel pin of ∅0.43mm/.017"≦ 250g
    • Average withdrawal force with steel pin of ∅0.43mm/.017"≧ 25g
    • Mechanical life/200 Minimum cycle

    Inquiry Info. PDF

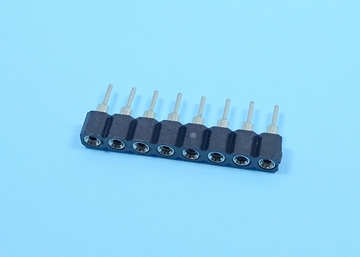

  • 2.54mm SIP SOCKET Single Row Round Pin

    LSIP254-1×XX 2.54mm SIP SOCKET Single Row Round Pin

    Specifications

    Material

    • Insulator body (housing): PPS, UL94-V0, Color-Black.
    • Pin (outer sleeve): Brass, machined, CuZn38pb2.
    • Tin plated:nickel-plated/100~150u" Tin plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: nickel-plated / full Gold-flashed(0.4~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +260℃ 10s max.

    Inquiry Info. PDF

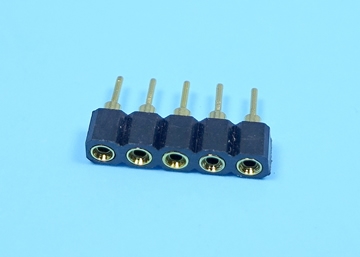

  • 2.54mm SIP SOCKET Single Row Round Pin (Gold Plated)

    LSIP254-1×XXGO 2.54mm SIP SOCKET Single Row Round Pin (Gold Plated)

    Specifications

    Material

    • Insulator body (housing): PPS, UL94-V0, Color-Black.
    • Pin (outer sleeve): Brass, machined, CuZn38pb2.
    • Gold plated:nickel-plated/full Gold-flash.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: nickel-plated / full Gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Soldering temperature: +260℃ 10s max.

    Inquiry Info. PDF

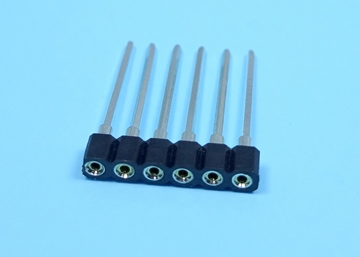

  • 2.54mm SIP SOCKET Single Row Round Pin (L:17.78mm)

    LSIP254L-1×XX 2.54mm SIP SOCKET Single Row Round Pin (L:17.78mm)

    Specifications


    Material

    • Insulator body(housing):PPS(black/UL94-V0)
    • Pin(outer sleeve):Brass,machined,CuZn38pb2
    • Tin plated:nickel plated/100~150u"Tin plated
    • Clip(4 finger):Beryllium copper
    • Gold plated:nickel plated/full Gold-f (0.4~1u")


    Electrical:

    • Operating temperature:Gold plated: -55°C to +125°C
    • Tin plated: -40°C to +105°C
    • Soldering temperature: + 260° C 10s max


    Mechanical:

    • Current rating: 3 Amps /contact max
    • Insulation resistance: > 1000 MΩ at V=100 V
    • Operating: 60 Veff

    Inquiry Info. PDF

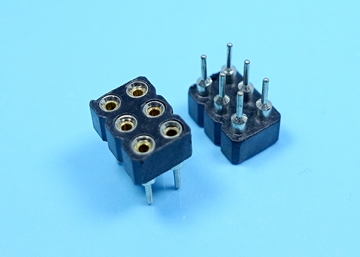

  • 2.54mm SIP SOCKET Dual Row Round Pin

    LSIP254-2xXX 2.54mm SIP SOCKET Dual Row Round Pin

    Specifications


    Material

    • Insulator body (housing): PPS, UL94-V0, Color-Black.
    • Pin (outer sleeve): Brass, machined, CuZn38pb2.
    • Tin plated:nickel-plated/100~150u" Tin plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: nickel-plated / full Gold-flashed(0.4~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +260℃ 10s max.

    Inquiry Info. PDF

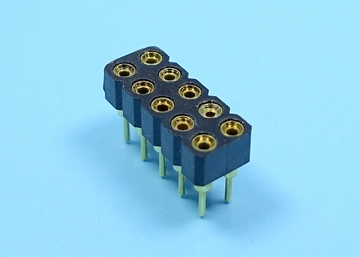

  • 2.54mm SIP SOCKET Dual Row Round Pin (Gold Plated)

    LSIP254-2xXXGO 2.54mm SIP SOCKET Dual Row Round Pin (Gold Plated)

    Specifications


    Material

    • Insulator body (housing): PPS, UL94-V0, Color-Black.
    • Pin (outer sleeve): Brass, machined, CuZn38pb2.
    • Gold plated: nickel-plated/full Gold-flashed(0.4u"~1u").
    • Clip (4 finger): Beryllium copper.
    • Gold plated: nickel-plated/full Gold-flashed(0.4u"~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Soldering temperature: +260℃ 10s max.

    Inquiry Info. PDF

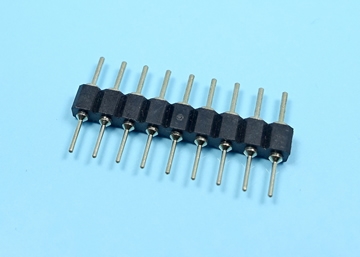

  • 2.54mm Machined Pin Header Single Row

    LSIP254M-1xXX 2.54mm Machined Pin Header Single Row

    Specifications


    Material

    • Insulator body(housing):PPS (black/UL94V-0).
    • Pin : Brass, machined,C3602.
    • Plating:>30u" Cu />100u" Tin plated.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Operating: 60 Veff.
    • Insulation resistance: > 1000 MΩ at V=100V.


    Mechanical:

    • Operating temperature: Tin plated: -40℃ to +105℃.
    • Soldering temperature:+260℃,10s max.

    Inquiry Info. PDF

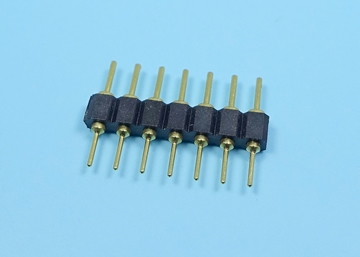

  • 2.54mm Machined Pin Header Single Row (Gold Plated)

    LSIP254M-1xXXGO 2.54mm Machined Pin Header Single Row (Gold Plated)

    Specifications


    Material

    • Insulator body(housing):PPS (black/UL94V-0).
    • Pin : Brass, machined,C3602.
    • Plating:nickel-plated/full gold-flashed(0.4u"~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Operating: 60 Veff.
    • Insulation resistance: > 1000 MΩ at V=100V.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Soldering temperature:+260℃,10s max.

    Inquiry Info. PDF
