• Specifications


    Material

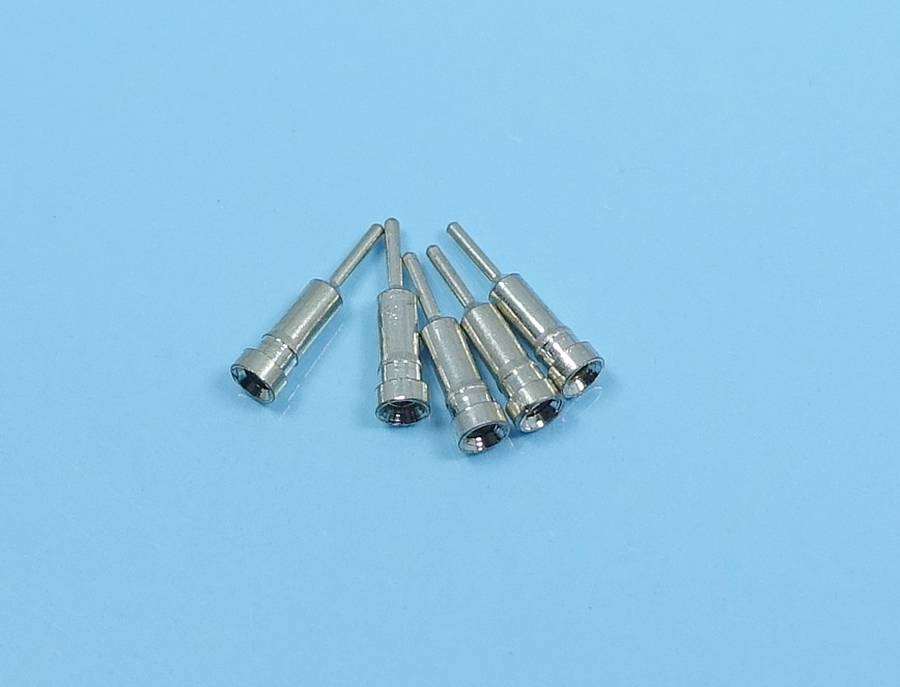

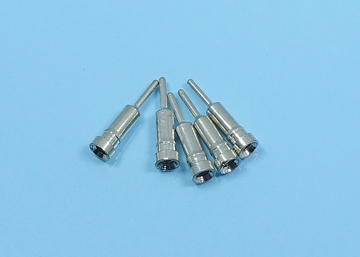

    • Pin (outer sleeve): Brass, machined, CuZn38pb2.
    • Tin plated: nickel/ 100~150u" Tin plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: nickel plated/ full Gold-flashed(0.4u"~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.


    Mechanical:

    • Average insertion force with steel pin of ∅0.43mm/.017"≦ 250g
    • Average withdrawal force with steel pin of ∅0.43mm/.017"≧ 25g
    • Mechanical life/200 Minimum cycle
