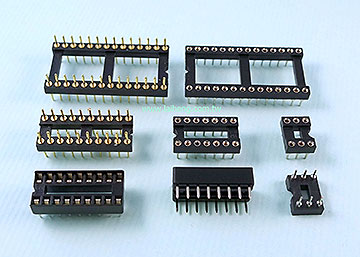

• IC Socket Series

    IC Socket Series

    Pitch:2.54mm
    No.Of Contacts:06~48  .
    Pin Type: Stamped Pin、 Machined  Pin   .
    Row Spacing:0.3 inch (7.62mm)  、0.4 inch(10.16mm)、0.6inch (15.24mm)  .
    Contact  Plating: Tin、Gold .

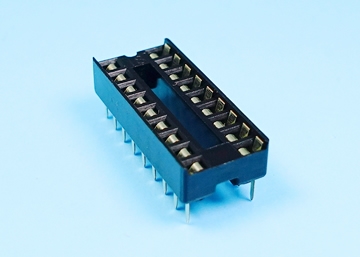

  • 2.54mm Stamped Pin IC Socket

    LICS2540X0XX X 2.54mm Stamped Pin IC Socket

    Inquiry Info. PDF

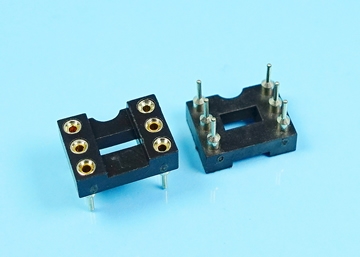

  • 2.54mm Machined Pin IC Socket (0.3 inch Wide)

    LICS254R030XX(N) 2.54mm Machined Pin IC Socket (0.3 inch Wide)

    Specifications

    Material

    • Insulator body (housing): PBT, UL94-V0, Color-Black.
    • Pin (outsleeve): Brass, machined, CuZn38pb2.
    • Tin plated: > 40u" nickel,100~150u" Tin Plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: > 40u" nickel/full
    • Gold-flashed(0.4u"~1u").

    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.

    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +200℃ 10s max.

    Inquiry Info. PDF

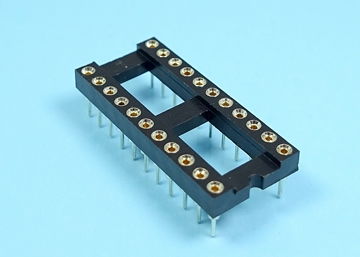

  • 2.54mm Machined Pin IC Socket (0.4 inch Wide) 22P

    LICS254R04022 2.54mm Machined Pin IC Socket (0.4 inch Wide) 22P

    Specifications

    Material

    • Insulator body (housing): PBT, UL94-V0, Color-Black.
    • Pin (outsleeve): Brass, machined, CuZn38pb2.
    • Tin plated: > 40u" nickel,100~150u" Tin Plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: > 40u" nickel/full Gold-flashed(0.4u"~1u").


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +200℃ 10s max.

    Inquiry Info. PDF

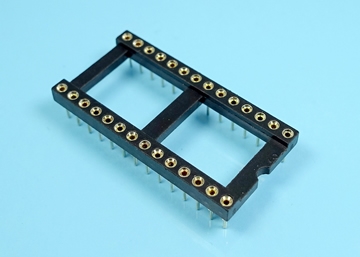

  • 2.54mm Machined Pin IC Socket (0.6 inch Wide)

    LICS254R060XX(N) 2.54mm Machined Pin IC Socket (0.6 inch Wide)

    Specifications


    Material

    • Insulator body (housing): PBT, UL94-V0, Color-Black.
    • Pin (outsleeve): Brass, machined, CuZn38pb2.
    • Tin plated: 80u" nickel,100~150u" Tin Plated.
    • Clip (4 finger): Beryllium copper.
    • Gold plated: 80u" nickel/full Gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +200℃ 10s max.

    Inquiry Info. PDF

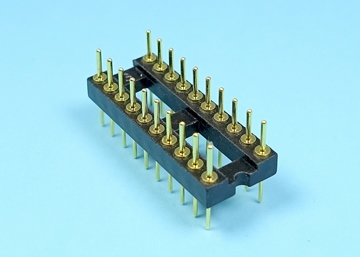

  • 2.54mm Machined Pin Header IC Socket (0.3 inch Wide)

    LICS254M030XX(N)GO 2.54mm Machined Pin Header IC Socket (0.3 inch Wide)

    Specifications


    Material

    • Insulator body (housing): PBT, UL94-V0, Color-Black.
    • Pin (outsleeve): Brass, machined, C3602.
    • Plating:Gold Plated.
    • 50u" nickel/full gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Soldering temperature: +200℃ ,10s max.

    Inquiry Info. PDF

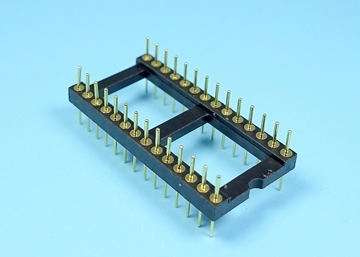

  • 2.54mm Machined Pin Header IC Socket (0.6 inch Wide)

    LICS254M060XX(N)GO 2.54mm Machined Pin Header IC Socket (0.6 inch Wide)

    Specifications


    Material

    • Insulator body (housing): PBT, UL94-V0, Color-Black.
    • Pin : Brass, machined, C3602.
    • Plating:Gold Plated.
    • 2um/80u" nickel,0.025um/full gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V.
    • Operating: 60 Veff.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Soldering temperature: +200℃ ,10s max.

    Inquiry Info. PDF

共計 6 項
