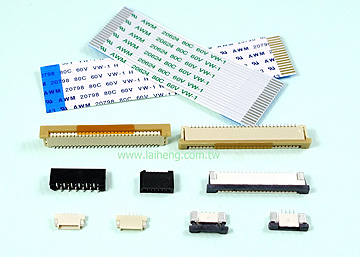

• 1.0mm Pitch FPC Series

    1.0mm Pitch FPC Series

    No.Of Contacts:04~30
    Type Of Entry:Top ,Bottom,Vertical
    Contact Plating:Tin
  • FPC 1.0mm H:1.5 NON-ZIF SMT Dual Contact Type Connector

    LFPCGBL123-XXR-TAND-2 FPC 1.0mm H:1.5 NON-ZIF SMT Dual Contact Type Connector

    NOTES:
    1. MATERIAL:

    • Housing: LCP, UL94-V0, Color: Natural.
    • Contacts: Brass, T=0.20.
    • Leg: Brass, T=0.20.
      　

    2. Plating:

    • Contacts: Tin Over Nickel.
    • Leg:Tin Over Nickel.
      　

    3. Rating:

    • Opertatig Voltage: 50V AC/DC.
    • Current Rating: 0.5A AC/DC.
    • Operating Temperature: -40°C~+80°C.

    Inquiry Info. PDF

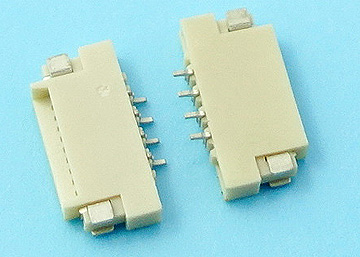

  • FPC 1.0mm H:2.8 NON-ZIF SMT Vertical Connector Normal&Reverse Type

    LFPCK810DL-SV-XX-PTX-X FPC 1.0mm H:2.8 NON-ZIF SMT Vertical Connector Normal&Reverse Type

    SPECIFICATION:

    • Poles:4~30.
    • Voltage rating:AC, DC, 50V(50HZ).
    • Current rating: 0.4A, AC/DC.
    • Withstand voltage:200V AC/minutes.
    • Working Temperature:-25°C ~ +85°C.
    • Insulation resistance:>500MΩ.
    • Contact resistance:<0.02Ω.
    • Terminal mtr'l:Phosphor Bronze.
    • Housing mtr'l: PA9T,UL94V-0
    • Housing color: Black.

    Inquiry Info. PDF

  • FPC 1.0mm H:2.8 NON-ZIF SMT R/A Dual Contact Type Connector

    LFPCK810DL-SR-XX-PT-X FPC 1.0mm H:2.8 NON-ZIF SMT R/A Dual Contact Type Connector

    SPECIFICATION:

    • Poles: 4~30.
    • Voltage rating:
      AC, DC, 200V(50HZ).
      AC, DC, 50V(200HZ).
    • Current rating:0.4A, AC/DC.
    • Withstand voltage :200V AC/minutes.
    • Working Temperature: -25°C ~ +85°C.
    • Insulation resistance: >500MΩ.
    • Contact resistance: <0.02Ω.
    • Terminal mtr'l: Phosphor Bronze.
    • Housing mtr'l: PA9T,UL94V-0.
    • Housing color: Black.

    　

    Inquiry Info. PDF

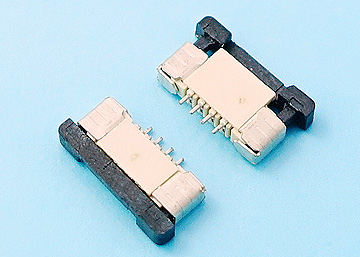

  • FPC 1.0mm H:2.0 Push-Pull SMT R/A Lower Type Connector

    LFPC-K814J-B-XX-PT-X FPC 1.0mm H:2.0 Push-Pull SMT R/A Lower Type Connector

    Electrical Characteristics:

    • Relative Humidity: 93%+40°C.
    • Insulation resistance: 500MΩ.
    • Contact Resistance: 40mΩ.
    • Withstand Voltage: 500V AC/Minute.
    • Temperature range: -25°C ~ +85°C.
    • Voltage rating: 50V AC/DC.
    • Current rating: 0.5A AC/DC.


    Material Description:

    • Terminal: Phosphor Bronze, Tin-plated.
    • Fitting Nail: Brass, Tin-plated.
    • Housing: LCP, UL94V-0, Color: Natural.
    • Slider: LCP, UL94V-0, Color: Black.

    Inquiry Info. PDF

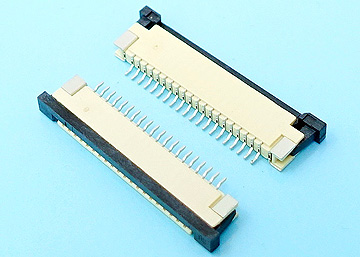

  • FPC 1.0mm H:2.5 Push-Pull SMT R/A Upper Type Connector

    LFPC-K815-U-XX-PT-X FPC 1.0mm H:2.5 Push-Pull SMT R/A Upper Type Connector

    MATERIAL
    1.1 Housing: Thermoplastic High Temp. UL94V-0, Color: Natural.
    1.2 Latch: Thermoplastic High Temp. UL94V-0, Color: Black.
    1.3 Terminal: Copper alloy, t=0.25mm
    1.4 Fitting Nail: Copper alloy, t=0.25mm
    FINSH
    2.1 Terminal: Underplating: Matt Tin Overall.
    2.2 Fitting Nail: Underplating: Matt Tin Overall.

    Inquiry Info. PDF

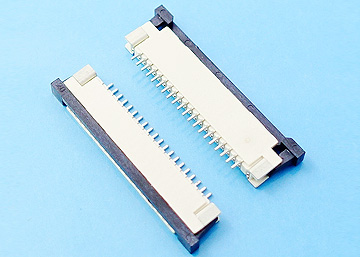

  • FPC 1.0mm H:2.5 Push-Pull SMT R/A Bottom Type Connector

    LFPC-K815-B-XX-PT-X FPC 1.0mm H:2.5 Push-Pull SMT R/A Bottom Type Connector

    MATERIAL
    1.1 Housing: Thermoplastic High Temp. UL94V-0, Color: Natural.
    1.2 Latch: Thermoplastic High Temp. UL94V-0, Color: Black.
    1.3 Terminal: Copper alloy, t=0.25mm
    1.4 Fitting Nail: Copper alloy, t=0.25mm
    FINSH
    2.1 Terminal: Underplating: Matt Tin Overall.
    2.2 Fitting Nail: Underplating: Matt Tin Overall.

    Inquiry Info. PDF

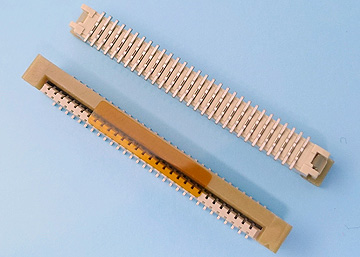

  • FPC 1.0mm H:3.6 Push-Pull SMT Vertical 30P Connector

    LFPC-1020-30SL-MAX FPC 1.0mm H:3.6 Push-Pull SMT Vertical 30P Connector

    Electrical Characteristics:

    • Current rating: 1A AC/DC.
    • Voltage rating: 125V AC/DC.
    • Temperature range: -40°C ~ +85°C.
    • Withstand Voltage: 500V AC/Minute.
    • Contact Resistance: 20mΩ.
    • Insulation resistance: 100MΩ.
    • Relative Humidity: 90%~95%+40°C.


    Material Description:

    • Contact: Phosphor Bronze, Tin-plated.
    • Housing: Nylon46, UL94V-0, Color: Natural.
    • Slider: PPS, UL94V-0, Color: Natural.

    Inquiry Info. PDF
