• DVI Connectors

    DVI Connectors

    • Type : Straight DIP、 Right Angle DIP
    • No.Of Contacts: 24 、29、24+29
    • Type of Contacts : Female (Socket)
    • Sell Plating: Nickel
    • Inaulator Color:Ivory、Black 、Blue

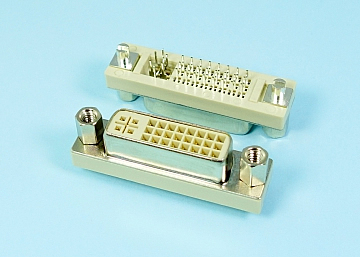

  • DVI-D Connector Straight DIP 24P Socket

    LDVI24-8V2S112AN41N0 DVI-D Connector Straight DIP 24P Socket

    Specifications

    • DVI-D
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating:
    • Ampere per Contact
    • Contact Resistance: 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 Kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing:PBT, UL 94V-0, Color:Ivory.
    • Terminal:Copper Alloy(Brass).
    • Shell:SPCC
    • Boardlock:Copper Alloy.
    • Screw:Copper Alloy.


    Finish

    • Terminal:Gold Flash Plated over Nickel at Contact Area. Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Boardlock:Tin Plated.
    • Screw:Nickel Plated.

    Inquiry Info. PDF

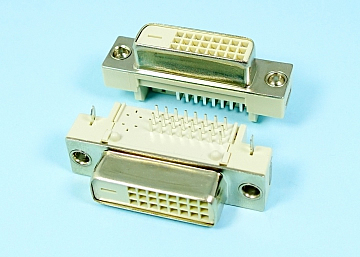

  • DVI-D Connector Right Angle DIP 24P Socket

    LDVI24-3V2S1X22141N0 DVI-D Connector Right Angle DIP 24P Socket

    Specifications

    • DVI-D
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance: 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing:PBT, UL 94V-0, Color:Ivory.
    • Latch:PA66, UL 94V-0, Color:Ivory.
    • Terminal:Copper Alloy.
    • Shell:SPCC.
    • Boardlock:Steel.
    • Rivet:Copper Alloy.


    Finish

    • Terminal:Selected Gold Plated in Contact Area, 100u" MIN. Tin Plated in Solder Area, 300" MIN. Nickel Underplated Overall.
    • Shell:Nickel Plated 800" MIN, Over Cu 50u" MIN.
    • Boardlock:Tin Plated 100u" MIN, Over Nickel 30u" MIN.
    • Rivet:Nickel Plated 60" MIN, Overall.

    Inquiry Info. PDF

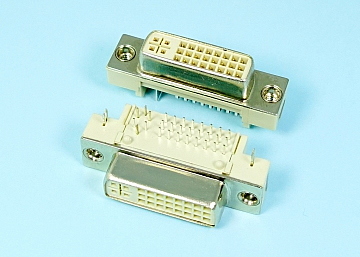

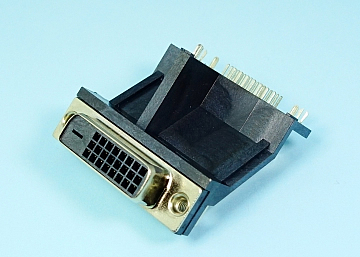

  • DVI-D Connector Right Angle DIP 24P Socket (H:30.31mm)

    LDVI24-DV33V2S1123X12NA DVI-D Connector Right Angle DIP 24P Socket (H:30.31mm)

    Specifications

    • DVI
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance(UPPER): 30 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 kgf Min.
    • Operating Temperature: -55°C to +85°C
    • Screw Locking Force: 2.5-3.0 kgf.
    • Screw Back Force: 1.0 kgf Min.


    Material

    • Housing:LCP, UL 94V-0, Color:Black.
    • Bracket:LCP, UL 94V-0, Color:Black.
    • Terminal:Copper Alloy.
    • Shell:SPCC.
    • Shield(outside):Stainless Steel.
    • Boardlock:Steel.
    • Rivet:Copper Alloy
    • Screw:Copper Alloy


    Finish

    • Terminal:Gold Plated over Nickel at Contact Area.Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Shield(outside):Solderable Nickle Plated.
    • Boardlock:Tin Plated.
    • Rivet:Nickel Plated.
    • Screw:Nickel Plated.

    Inquiry Info. PDF

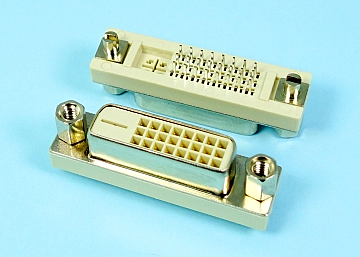

  • DVI-I Connector Straight DIP 29P Socket

    LDVI29-8V4S112AN41N0 DVI-I Connector Straight DIP 29P Socket

    Specifications

    • DVI-I
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance: 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 Kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing:PBT, UL 94V-0, Color:Ivory.
    • Terminal:Copper Alloy(Brass).
    • Shell:SPCC
    • Boardlock:Copper Alloy
    • Screw:Copper Alloy


    Finish

    • Terminal:Gold Flash Plated over Nickel at Contact Area. Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Boardlock:Tin Plated.
    • Screw:Nickel Plated.

    Inquiry Info. PDF

  • DVI-I Connector Right Angle DIP 29P Socket

    LDVI29-3V4S1X22141N0 DVI-I Connector Right Angle DIP 29P Socket

    Specifications

    • DVI-I
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance: 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 Kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing:PBT, UL 94V-0, Color:Ivory.
    • Latch:PA66, UL 94V-0, Color:Ivory.
    • Terminal:Copper Alloy.
    • Shell:SPCC.
    • Boardlock:Steel.
    • Rivet:Copper Alloy


    Finish

    • Terminal:Selected Gold Plated in Contact Area, 100u" MIN. Tin Plated in Solder Area, 30u" MIN. Nickel Underplated Overall.
    • Shell:Nickel Plated 80u" MIN, Over Cu 50u” MIN.
    • Boardlock:Tin Plated 100u" MIN, Over Nickel 30" MIN.
    • Rivet:Nickel Plated 60" MIN, Overall.

    Inquiry Info. PDF

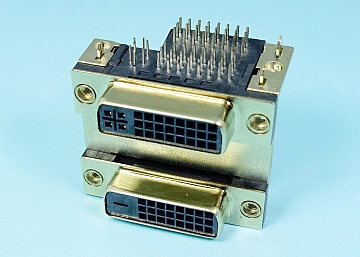

  • DVI-D /DVI-I Connector Right Angle DIP 24P +29P Socket (20.4mm)

    LDVI24+29-SV2V4C1X2M11XN3 DVI-D /DVI-I Connector Right Angle DIP 24P +29P Socket (20.4mm)

    Specifications

    • DVI
    • Operation Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance(UPPER): 30 Milliohms Max. Contact Resistance(LOWER): 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 Kgf Max.
    • Total Unmating Force: 1.0 kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing(UPPER):PBT, UL 94V-0, Color:Black.
    • Housing (LOWER):PBT, UL 94V-0, Color:Black.
    • Terminal:Copper Alloy
    • Shell:SPCC.
    • Shield:Stainless Steel Boardlock:Copper Alloy.
    • Bracket:Zinc Alloy.


    Finish

    • Terminal:Gold Plated over Nickel at Contact Area. Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Boardlock:Tin Plated.
    • Bracket:Nickel Plated.

    Inquiry Info. PDF
