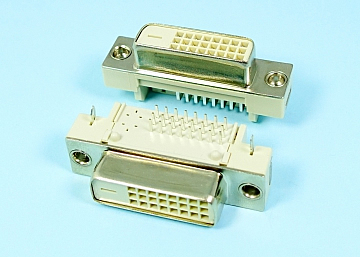

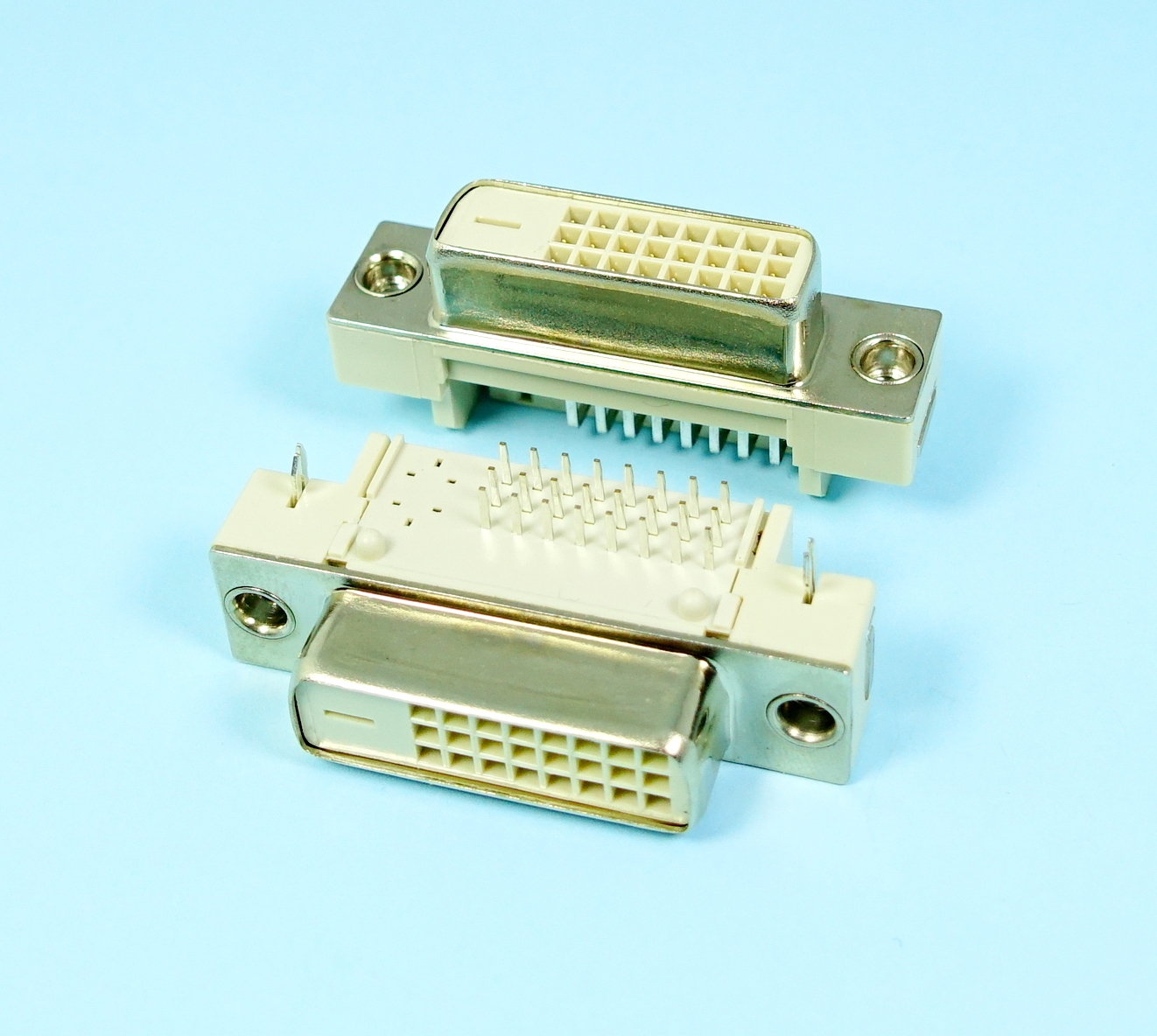

LDVI24-3V2S1X22141N0 DVI-D Connector Right Angle DIP 24P Socket

Specifications

• DVI-D
• Voltage: 40 VAC(RMS) Max.
• Current Rating: 1.5 Ampere per Contact
• Contact Resistance: 20 Milliohms Max.
• Insulation Resistance: 1000 Megohms Min.
• Dielectric Withstanding Voltage: 500V DC(RMS)
• Total Mating Force: 4.5 kgf Max.
• Total Unmating Force: 1.0 kgf Min.
• Operating Temperature: -55°C to +85°C


Material

• Housing:PBT, UL 94V-0, Color:Ivory.
• Latch:PA66, UL 94V-0, Color:Ivory.
• Terminal:Copper Alloy.
• Shell:SPCC.
• Boardlock:Steel.
• Rivet:Copper Alloy.


Finish

• Terminal:Selected Gold Plated in Contact Area, 100u" MIN. Tin Plated in Solder Area, 300" MIN. Nickel Underplated Overall.
• Shell:Nickel Plated 800" MIN, Over Cu 50u" MIN.
• Boardlock:Tin Plated 100u" MIN, Over Nickel 30u" MIN.
• Rivet:Nickel Plated 60" MIN, Overall.
