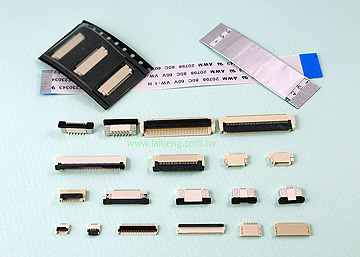

• 0.5mm Pitch FPC Series

    0.5mm Pitch FPC Series

    No.Of Contacts:04~60
    Type Of Entry:Top ,Bottom,Vertical
    Contact Plating:Gold Flash,Tin

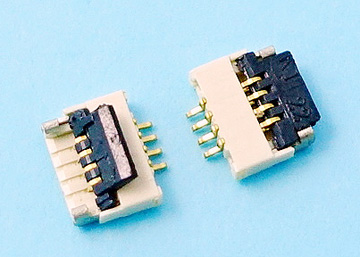

  • FPC 0.5mm H:1.0 Cover Lift SMT R/A Lower Type Connector

    LFPC05102-XXRL-TAG FPC 0.5mm H:1.0 Cover Lift SMT R/A Lower Type Connector

    NOTES:
    1. MATERIAL:

    • HOUSING: HIGHT-TEMP PLASTIC,UL 94-V0, COLOR: WHITE.
    • COVER: HIGHT-TEMP PLASTIC,UL 94-V0, COLOR: BLACK.
    • CONTACT: COPPER ALLOY.
    • LEG: COPPER ALLOY.
      　

    2. PLATING:

    • CONTACT: GOLD PLATED ON NICKEL OVERALL.
    • LEG: TIN PLATED ON NICKEL OVERALL.
      　

    3. RATING:

    • CURRENT RATING: 0.4A AC/DC.
    • VOLTAGE RATING: 50V AC/DC.
    • TEMPERATURE RANGE:-40°C~+85°C.

    Inquiry Info. PDF

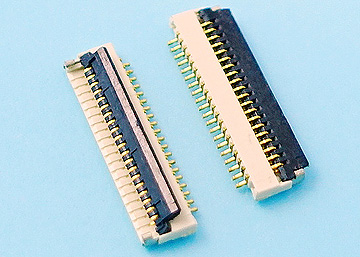

  • FPC 0.5mm H:1.0 Cover Lift SMT R/A Lower Type Connector

    LFPC05103-XXRL-TAG FPC 0.5mm H:1.0 Cover Lift SMT R/A Lower Type Connector

    NOTES:
    1. MATERIAL:

    • HOUSING: HIGHT-TEMP PLASTIC,UL 94-V0, COLOR: WHITE.
    • COVER: HIGHT-TEMP PLASTIC,UL 94-V0, COLOR: BLACK.
    • CONTACT: COPPER ALLOY.
    • LEG: COPPER ALLOY.
      　

    2. PLATING:

    • CONTACT: GOLD OR TIN PLATED ON NICKEL OVERALL.
    • LEG: TIN PLATED ON NICKEL OVERALL.
      　

    3. RATING:

    • CURRENT RATING: 0.4A AC/DC.
    • VOLTAGE RATING: 50V AC/DC.
    • TEMPERATURE RANGE:-40°C~+85°C.

    Inquiry Info. PDF

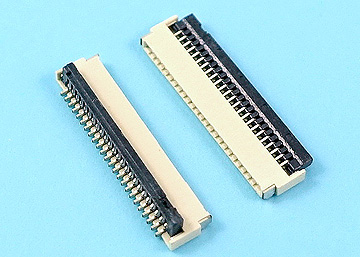

  • FPC 0.5mm H:1.0 Cover Lift SMT R/A Lower Type Connector

    LFPC05103B-XXR-TAX FPC 0.5mm H:1.0 Cover Lift SMT R/A Lower Type Connector

    NOTES:
    1. MATERIAL:

    • HOUSING: HIGHT-TEMP PLASTIC, UL 94-V0, COLOR:Natural.
    • COVER: HIGHT-TEMP PLASTIC, UL 94-V0, COLOR:Black.
    • CONTACT: COPPER ALLOY.
    • LEG: COPPER ALLOY.
      　

    2. PLATING:

    • CONTACT: G=GOLD FLASH.
    • 0=Matte TIN PLATED ON NICKEL OVERALL.
    • LEG: MATTE TIN PLATED ON NICKEL OVERALL.
      　

    3. RATING:

    • CURRENT RATING: 0.5A AC/DC.
    • VOLTAGE RATING: 25V AC/DC.
    • TEMPERATURE RANGE:-25°C~+85°C.

    Inquiry Info. PDF

  • FPC 0.5mm H:1.2 NON-ZIF SMT R/A Dual Contact Type Connector

    LFPC0511-XXR-TAX FPC 0.5mm H:1.2 NON-ZIF SMT R/A Dual Contact Type Connector

    Note:
    1.Material
    1.1: Housing: LCP UL94-V0 Color:Natural. Natural.
    1.2: Actuator: C5191-H, T=0.20.±0.01.
    1.3: LEG: C26802-H, T=0.25±0.01. 2.Plating
    2.1: Contact: Gold flash over Nickel.
    2.2: LEG: MGold flash over Nickel.
    3.Rating:
    3.1: Operating Voltage: 50V AC/DC.
    3.2: Current Rating: 0.4A AC/DC.
    3.3: Operating Temperature: -40 C~+80 C.

    Inquiry Info. PDF

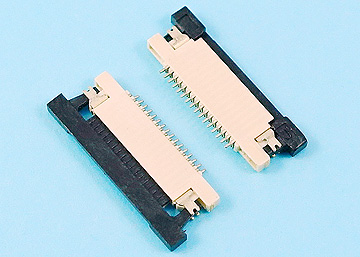

  • FPC 0.5mm H:1.2 Cover Lift SMT R/A Upper Contact Type Connector

    LFPC0512-XXRL-TAX FPC 0.5mm H:1.2 Cover Lift SMT R/A Upper Contact Type Connector

    NOTES:
    1. MATERIAL:

    • HOUSING: HIGHT-TEMP PLASTIC, UL94-V0, COLOR: NATURAL.
    • COVER: HIGHT-TEMP PLASTIC, UL94-V0, COLOR: BLACK.
    • CONTACT: COPPER ALLOY.
    • LEG: COPPER ALLOY.
      　

    2. PLATING:

    • CONTACT: GOLD OR TIN PLATED ON NICKEL OVERALL.
    • LEG: TIN PLATED ON NICKEL OVERALL.
      　

    3. RATING:

    • CURRENT RATING: 0.5A AC/DC.
    • VOLTAGE RATING: 25V AC/DC.
    • TEMPERATURE RANGE: -25°C ~ +85°C.

    Inquiry Info. PDF

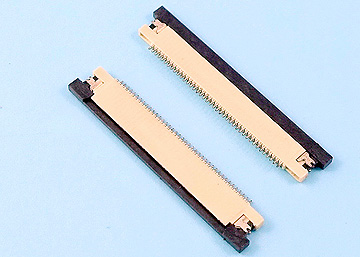

  • FPC 0.5mm H:1.2 Push-Pull SMT R/A Upper Contact Type Connector

    LFPC-KH825-U-XX-XX-X FPC 0.5mm H:1.2 Push-Pull SMT R/A Upper Contact Type Connector

    Electrical characteristics:

    • Current Rating: 0.4A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: ≦20mΩ
    • Insulation Resistance: ≧500MΩ
    • Relative Humidity: 93%+40°C.
      　

    Material Description:

    • Terminal: Phosphor Bronze Tin-leadplated
    • Fitting Nail: Brass Tin-leadplated
    • Housing: Thermoplastic(UL94V-0)
    • Slider: Thermoplastic(UL94V-0)

    Inquiry Info. PDF

  • FPC 0.5mm H:1.2 Push-Pull SMT R/A Bottom Contact Type Connector

    LFPC-KH825-B-XX-XX-X FPC 0.5mm H:1.2 Push-Pull SMT R/A Bottom Contact Type Connector

    Electrical characteristics:

    • Current Rating: 0.4A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: ≦20mΩ
    • Insulation Resistance: ≧500MΩ
    • Relative Humidity: 93%+40°C.
      　

    Material Description:

    • Terminal: Phosphor Bronze Tin-leadplated
    • Fitting Nail: Brass Tin-plated
    • Housing: Thermoplastic(UL94V-0)
    • Slider: Thermoplastic(UL94V-0)

    Inquiry Info. PDF

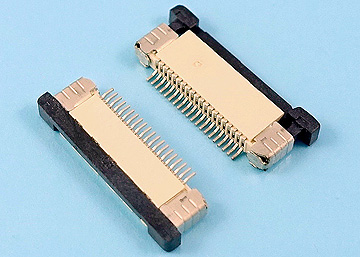

  • FPC 0.5mm H:2.0 Push-Pull SMT R/A Upper Type Connector

    LFPCK835-U-XX-XX-X FPC 0.5mm H:2.0 Push-Pull SMT R/A Upper Type Connector

    Electrical characteristics:

    • Current Rating: 0.4A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: ≦20mΩ
    • Insulation Resistance: ≧500MΩ
    • Relative Humidity: 93%+40°C.
      　

    Material Description:

    • Terminal: Phosphor Bronze Tin/gold plated
    • Fitting Nail: Brass Tin plated
    • Housing: Thermoplastic(UL94V-0)
    • Slider: Thermoplastic(UL94V-0)

    Inquiry Info. PDF

  • FPC 0.5mm H:2.0 Push-Pull SMT R/A Bottom Type Connector

    LFPCK835-B-XX-XX-X FPC 0.5mm H:2.0 Push-Pull SMT R/A Bottom Type Connector

    Electrical characteristics:

    • Current Rating: 0.4A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: ≦20mΩ
    • Insulation Resistance: ≧500MΩ
    • Relative Humidity: 93%+40°C.
      　

    Material Description:

    • Terminal: Phosphor Bronze Tin/gold plated
    • Fitting Nail: Brass Tin plated
    • Housing: Thermoplastic(UL94V-0)
    • Slider: Thermoplastic(UL94V-0)

    Inquiry Info. PDF

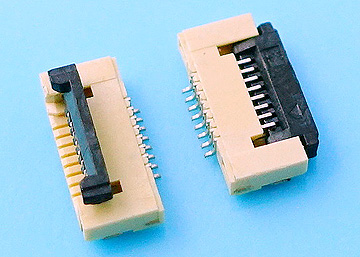

  • FPC 0.5mm H:1.5 NON-ZIF SMT R/A Dual Contact Type Connector

    LFPCGBL121-XXR-TAND-X FPC 0.5mm H:1.5 NON-ZIF SMT R/A Dual Contact Type Connector

    NOTES:
    1. MATERIAL:

    • Housing: 1.PA46 or 2.LCP , UL94-V0, Color: Natural.
    • Contacts: Brass,T=0.20.
    • Leg: Brass, T=0.20.
      　

    2. PLATING:

    • Contacts: Tin Over Nickel.
    • Leg: Tin Over Nickel.
      　

    3. RATING:

    • Opertatig Voltage: 50V AC/DC.
    • Current Rating: 0.5A AC/DC.
    • Operating Temperature: -40°C ~ +85°C.

    Inquiry Info. PDF
