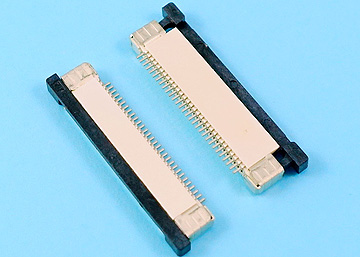

LFPCK835-B-XX-XX-X FPC 0.5mm H:2.0 Push-Pull SMT R/A Bottom Type Connector

Electrical characteristics:

• Current Rating: 0.4A AC/DC.
• Voltage Rating: 50V AC/DC.
• Temperature Range:-25°C ~ +85°C.
• Withstand Voltage: 200V AC/Minute.
• Contact Resistance: ≦20mΩ
• Insulation Resistance: ≧500MΩ
• Relative Humidity: 93%+40°C.
  　

Material Description:

• Terminal: Phosphor Bronze Tin/gold plated
• Fitting Nail: Brass Tin plated
• Housing: Thermoplastic(UL94V-0)
• Slider: Thermoplastic(UL94V-0)
