• Chip Carrier Socket Series (PLCC)

    Chip Carrier Socket Series (PLCC)

    PLCC Series:
    Pitch:1.27mm
    No.Of Contacts:20~84.
    Type: SMT.
    Contact  Plating: Tin Only.
    Insulator:PPS  UL94V-0.

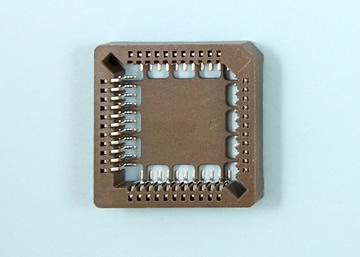

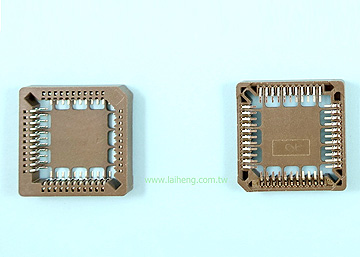

  • 1.27mm Center Surface Mount PLCC Chip Carrier Socket SMD

    LPLCC0XXS 1.27mm Center Surface Mount PLCC Chip Carrier Socket SMD

    Specifications

    • Temperature range -50 to 105 .
    • Current rating: 1 AMP.
    • Capacitance: 1.0 Picoforads (Max).
    • Contact resistance: 30 Milliohms (Max).
    • Insulation resistance: 1000 Megohmx (Max).
    • Withstanding voltage: AC 600 Vrms.


    Material

    • Contact material: Phosphor bronze JIS 5191.
    • Contact plating: 100u" Tin over 40u" Nickel.
    • Insulator: Hi-temp PPS+GF40%, UL 94V-0,240 .
    • Insulator Color: Brown.
