• 0.5mm Pitch FPC Series

    0.5mm Pitch FPC Series

    No.Of Contacts:04~60
    Type Of Entry:Top ,Bottom,Vertical
    Contact Plating:Gold Flash,Tin

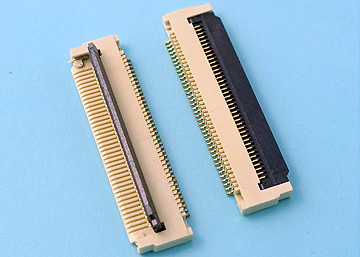

  • FPC 0.5mm H:2.0 Push-Pull SMT Vertical Connector Normal Type

    LFPC-K841-N-XX-XX-X FPC 0.5mm H:2.0 Push-Pull SMT Vertical Connector Normal Type

    NOTES:
    1. MATERIAL:

    • Housing: Thermoplastic High Temp(LCP). UL94V-0; Color: Natural.
    • Latch: Thermoplastic High Temp(LCP). UL94V-0; Color: Black.
    • Terminal: Phosphor Bronze.
    • Fitting Nail: Brass.
    • Cap: Stainless Steel.
      　

    2. Finish:

    • Terminal: Matte Tin/Gold Flash over all.
    • Fitting Nail: Matte Tin over all.
      　

    3. Electrical Characteristics:

    • Current Rating: 0.5A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: 20mΩ max.
    • Insulation Resistance: 500MΩ min.
    • Relative Humidity: 93%+40°C.

    Inquiry Info. PDF

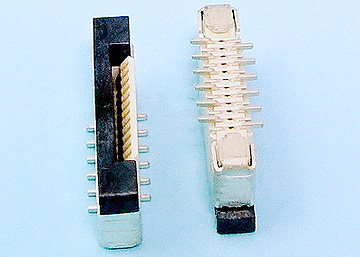

  • FPC 0.5mm H:2.0 Push-Pull SMT Vertical Connector Reverse Type

    LFPC-K841-R-XX-XX-X FPC 0.5mm H:2.0 Push-Pull SMT Vertical Connector Reverse Type

    NOTES:
    1. MATERIAL:

    • Housing: Thermoplastic High Temp(LCP). UL94V-0; Color: Natural.
    • Latch: Thermoplastic High Temp(LCP). UL94V-0; Color: Black.
    • Terminal: Phosphor Bronze.
    • Fitting Nail: Brass.
    • Cap: Stainless Steel.
      　

    2. Finish:

    • Terminal: Matte Tin/Gold Flash over all.
    • Fitting Nail: Matte Tin over all.
      　

    3. Electrical Characteristics:

    • Current Rating: 0.5A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: 20mΩ max.
    • Insulation Resistance: 500MΩ min.
    • Relative Humidity: 93%+40°C.

    Inquiry Info. PDF

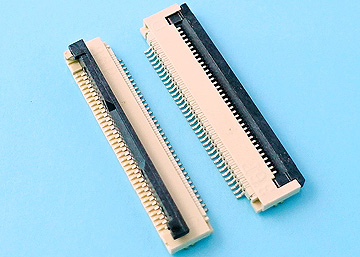

  • FPC 0.5mm H:2.0 Cover Lift SMT R/A Lower Type Connector

    LFPC-K855-B-XX-XX-X FPC 0.5mm H:2.0 Cover Lift SMT R/A Lower Type Connector

    Electrical characteristics:

    • Current Rating: 0.5A AC/DC.
    • Voltage Rating: 50V AC/DC.
    • Temperature Range:-25°C ~ +85°C.
    • Withstand Voltage: 200V AC/Minute.
    • Contact Resistance: ≦20mΩ
    • Insulation Resistance: ≧500MΩ
    • Relative Humidity: 93%+40°C.

    Material Description:

    • Terminal: Phosphor Bronze
    • Fitting Nail: Brass
    • Housing: Thermoplastic(UL94V-0)
    • Slider: Thermoplastic(UL94V-0)

    Inquiry Info. PDF

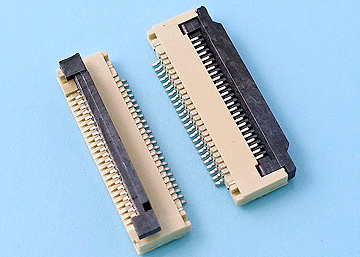

  • FPC 0.5mm H:2.0 Cover Lift SMT R/A Lower Type Connector

    LFPC0521-XXRL-TAX FPC 0.5mm H:2.0 Cover Lift SMT R/A Lower Type Connector

    Note:
    1.Material
    1.1: Housing: LCP UL94-V0 Color:Natural. Natural. .
    1.2: Actuator: LCP UL94-V0 Color:Black.
    1.3: Contact: Phosphor Bronze.
    1.4: LEG: Brass.
    2.Plating
    2.1: Contact: Matte Tin Or Gold Plating Nickel Overall .
    2.2: LEG: Matte Tin Plating Over Nickel.
    3.Rating:
    3.1: Operating Voltage: 50V AC/DC.
    3.2: Current Rating: 0.4A AC/DC.
    3.3: Operating Temperature: -25 C~+85 C. -25 C~+85 C.-25°C~+85°C.

    Inquiry Info. PDF

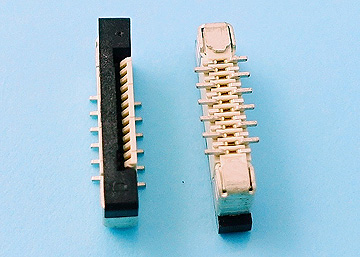

  • FPC 0.5mm H:2.0 40Pin Cover Lift SMT R/A Lower Type Connector

    LFPC0524-40RL-TAG FPC 0.5mm H:2.0 40Pin Cover Lift SMT R/A Lower Type Connector

    Note:
    1.Material
    1.1: Housing: LCP UL94-V0 Color:Natural. Natural. .
    1.2: Actuator: LCP UL94-V0 Color:Black.
    1.3: Contact: Phosphor Bronze.
    1.4: LEG: Brass.
    2.Plating
    2.1: Contact: Matte Tin Or Gold Plating Nickel Overall .
    2.2: LEG: Matte Tin Plating Over Nickel.
    3.Rating:
    3.1: Operating Voltage: 50V AC/DC.
    3.2: Current Rating: 0.4A AC/DC.
    3.3: Operating Temperature: -25 C~+85 C. -25 C~+85 C.-25°C~+85°C.

    Inquiry Info. PDF
