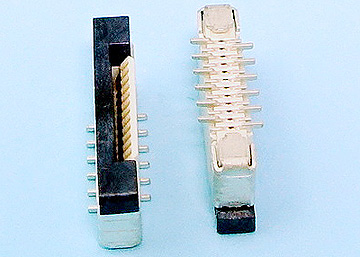

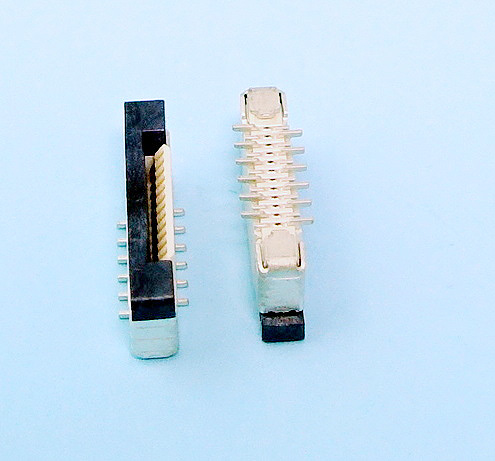

LFPC-K841-R-XX-XX-X FPC 0.5mm H:2.0 Push-Pull SMT Vertical Connector Reverse Type

NOTES:
1. MATERIAL:

• Housing: Thermoplastic High Temp(LCP). UL94V-0; Color: Natural.
• Latch: Thermoplastic High Temp(LCP). UL94V-0; Color: Black.
• Terminal: Phosphor Bronze.
• Fitting Nail: Brass.
• Cap: Stainless Steel.
  　

2. Finish:

• Terminal: Matte Tin/Gold Flash over all.
• Fitting Nail: Matte Tin over all.
  　

3. Electrical Characteristics:

• Current Rating: 0.5A AC/DC.
• Voltage Rating: 50V AC/DC.
• Temperature Range:-25°C ~ +85°C.
• Withstand Voltage: 200V AC/Minute.
• Contact Resistance: 20mΩ max.
• Insulation Resistance: 500MΩ min.
• Relative Humidity: 93%+40°C.
