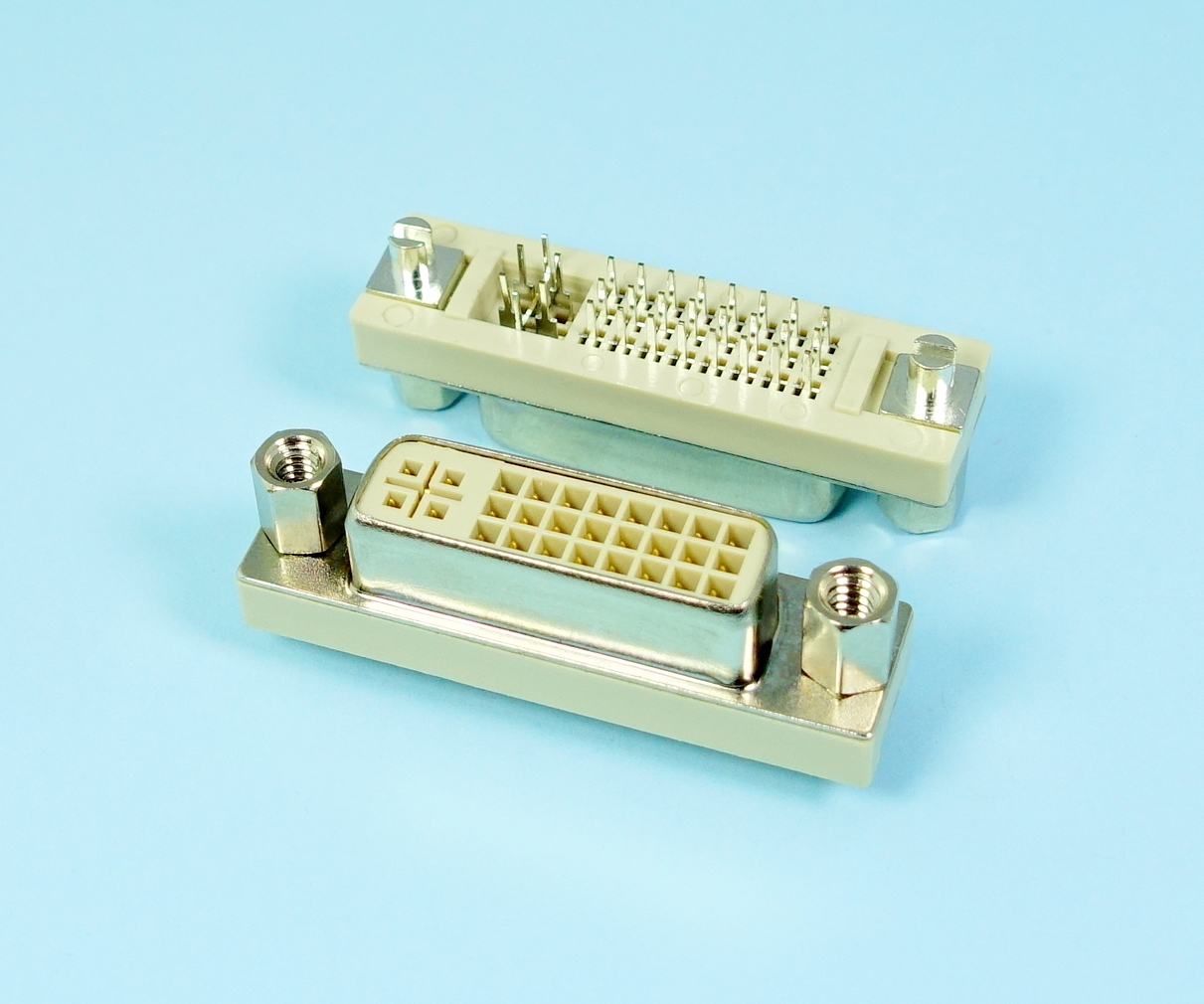

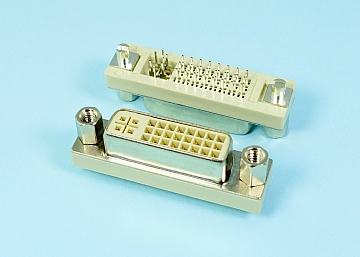

LDVI29-8V4S112AN41N0 DVI-I Connector Straight DIP 29P Socket

Specifications

• DVI-I
• Voltage: 40 VAC(RMS) Max.
• Current Rating: 1.5 Ampere per Contact
• Contact Resistance: 20 Milliohms Max.
• Insulation Resistance: 1000 Megohms Min.
• Dielectric Withstanding Voltage: 500V DC(RMS)
• Total Mating Force: 4.5 kgf Max.
• Total Unmating Force: 1.0 Kgf Min.
• Operating Temperature: -55°C to +85°C


Material

• Housing:PBT, UL 94V-0, Color:Ivory.
• Terminal:Copper Alloy(Brass).
• Shell:SPCC
• Boardlock:Copper Alloy
• Screw:Copper Alloy


Finish

• Terminal:Gold Flash Plated over Nickel at Contact Area. Tin Plated over Nickel at Solder Ared.
• Shell:Nickel Plated.
• Boardlock:Tin Plated.
• Screw:Nickel Plated.
