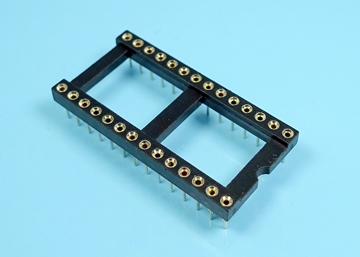

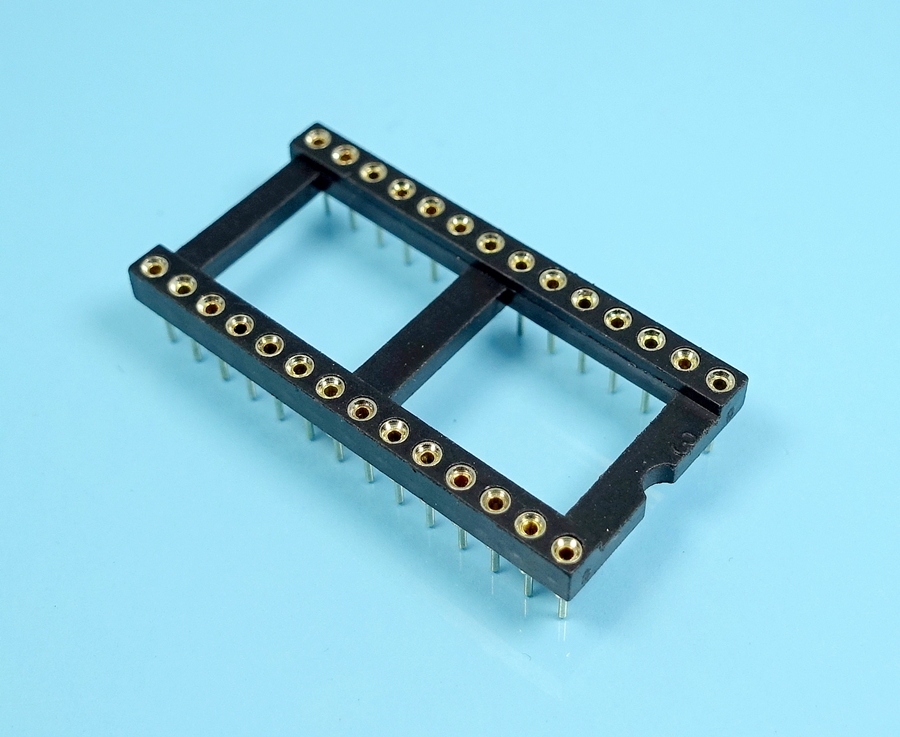

LICS254R060XX(N) 2.54mm Machined Pin IC Socket (0.6 inch Wide)

Specifications


Material

• Insulator body (housing): PBT, UL94-V0, Color-Black.
• Pin (outsleeve): Brass, machined, CuZn38pb2.
• Tin plated: 80u" nickel,100~150u" Tin Plated.
• Clip (4 finger): Beryllium copper.
• Gold plated: 80u" nickel/full Gold-flashed.


Electrical:

• Current rating: 3 Amps / contact max.
• Insulation resistance: > 1000 MΩ at V=100V.
• Operating: 60 Veff.


Mechanical:

• Operating temperature: Gold plated: -55℃ to +125℃.
• Tin plated: -40℃ to +105℃.
• Soldering temperature: +200℃ 10s max.
