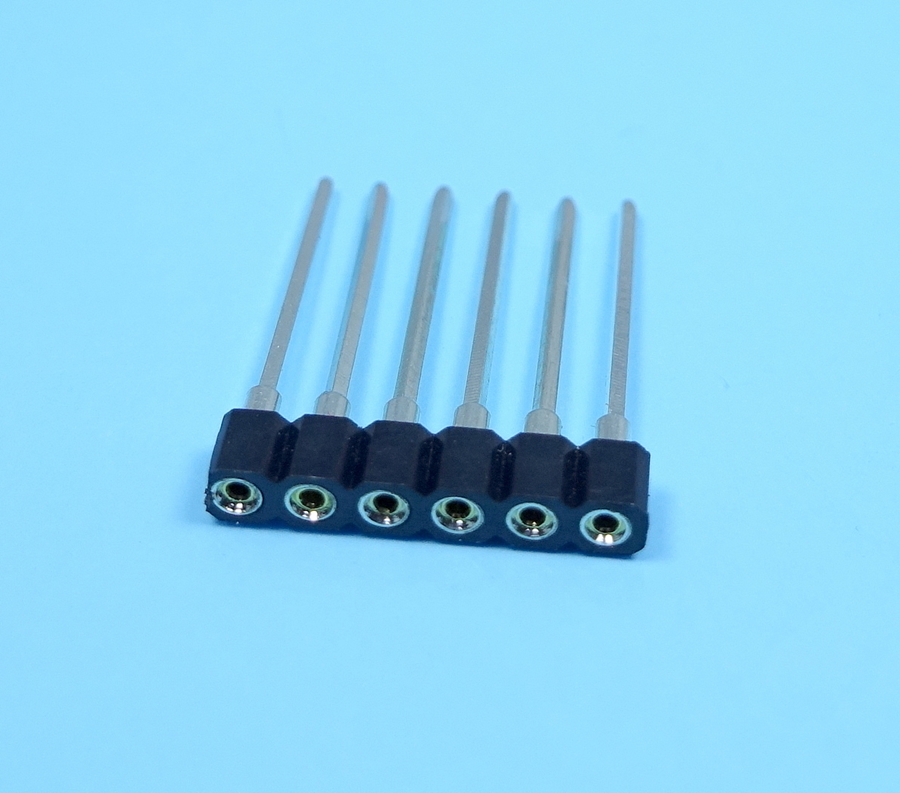

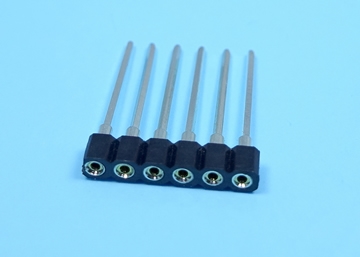

LSIP254L-1×XX 2.54mm SIP SOCKET Single Row Round Pin (L:17.78mm)

Specifications


Material

• Insulator body(housing):PPS(black/UL94-V0)
• Pin(outer sleeve):Brass,machined,CuZn38pb2
• Tin plated:nickel plated/100~150u"Tin plated
• Clip(4 finger):Beryllium copper
• Gold plated:nickel plated/full Gold-f (0.4~1u")


Electrical:

• Operating temperature:Gold plated: -55°C to +125°C
• Tin plated: -40°C to +105°C
• Soldering temperature: + 260° C 10s max


Mechanical:

• Current rating: 3 Amps /contact max
• Insulation resistance: > 1000 MΩ at V=100 V
• Operating: 60 Veff
