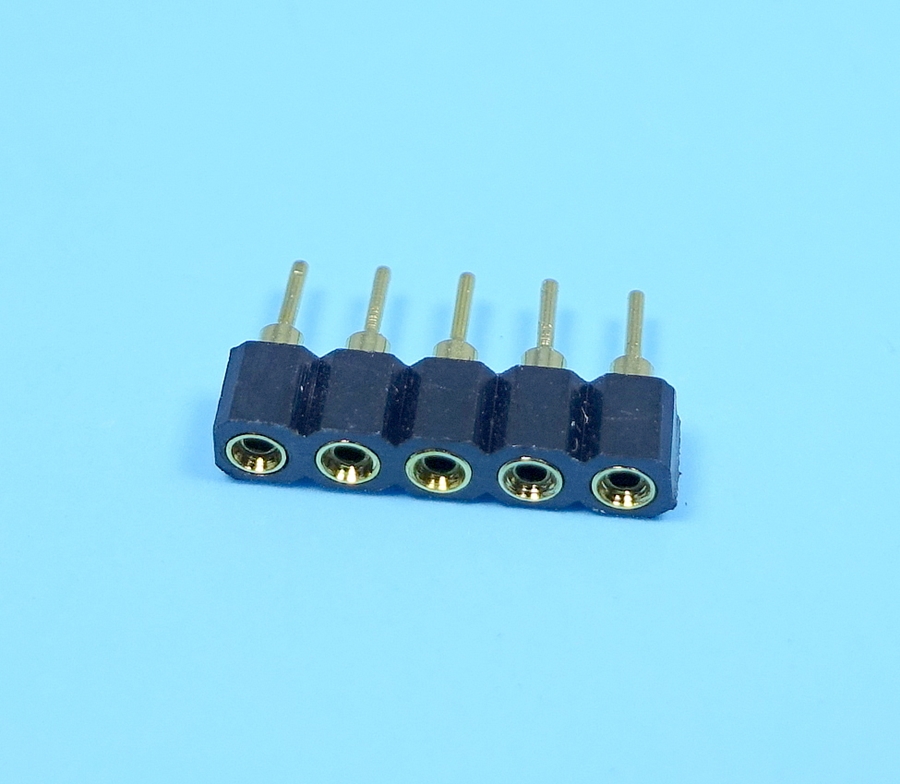

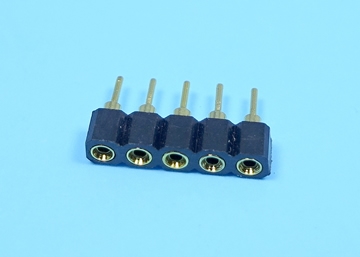

LSIP254-1×XXGO 2.54mm SIP SOCKET Single Row Round Pin (Gold Plated)

Specifications

Material

• Insulator body (housing): PPS, UL94-V0, Color-Black.
• Pin (outer sleeve): Brass, machined, CuZn38pb2.
• Gold plated:nickel-plated/full Gold-flash.
• Clip (4 finger): Beryllium copper.
• Gold plated: nickel-plated / full Gold-flashed.


Electrical:

• Current rating: 3 Amps / contact max.
• Insulation resistance: > 1000 MΩ at V=100V.
• Operating: 60 Veff.


Mechanical:

• Operating temperature: Gold plated: -55℃ to +125℃.
• Soldering temperature: +260℃ 10s max.
