• SMT Type

    1.27mm (.050") Female Pin Header: 180° /Straight

    Specifications

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Contact Resistance :20 m ohms max.
    • Dielectric Withstanding:AC 500 V
    • Operating Temperature :-40℃ ～ +105℃
    • Soldering Temperature :260℃ for 3～5sec Max.
    • Insulator Material :Nylon 6T 、LCP (UL94V-0), Black.
    • Contact Material :Copper Alloy
    • Contact Plating :Tin,Gold(standard)

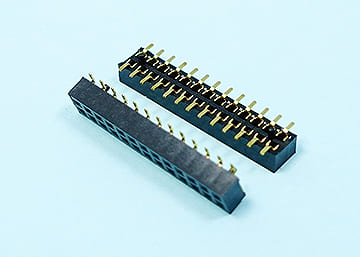

  • 1.27mm Female Header H:3.4 W:3.0 SMT Type Dual Row

    LPCB127ATG X-4.7-2xXX-X 1.27mm Female Header H:3.4 W:3.0 SMT Type Dual Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon-6T/LCP(Black)

    Inquiry Info. PDF

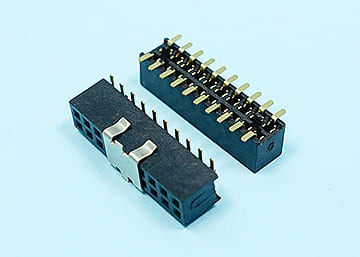

  • 1.27mm Female Header H:3.4 W:3.0 SMT Type Dual Row With Pegs

    LPCB127ATG X-4.7-2xXX-P 1.27mm Female Header H:3.4 W:3.0 SMT Type Dual Row With Pegs

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon-6T/LCP(Black)

    Inquiry Info. PDF

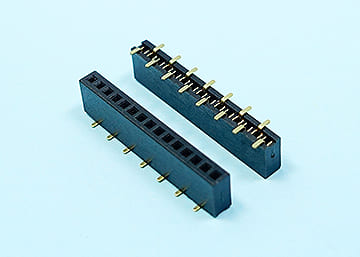

  • 1.27mm Female Header H:4.3 W:2.2 SMT Type Single Row

    LPCB127BTG X-3.7-1xXX XT 1.27mm Female Header H:4.3 W:2.2 SMT Type Single Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon-6T(Black)

    Inquiry Info. PDF

  • 1.27mm Female Header H:4.3 W:3.0 SMT Type Dual Row

    LPCB127BTG X -5.1-2xXX-X 1.27mm Female Header H:4.3 W:3.0 SMT Type Dual Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: LCP(Black)

    Inquiry Info. PDF

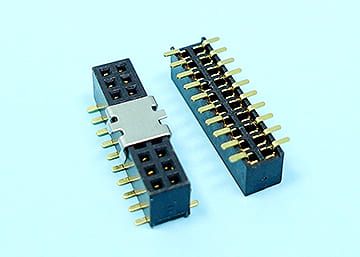

  • 1.27mm Female Header H:4.3 W:3.0 SMT Type Dual Row With Pegs

    LPCB127BTG X -5.1-2xXX-P 1.27mm Female Header H:4.3 W:3.0 SMT Type Dual Row With Pegs

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: LCP(Black)

    Inquiry Info. PDF

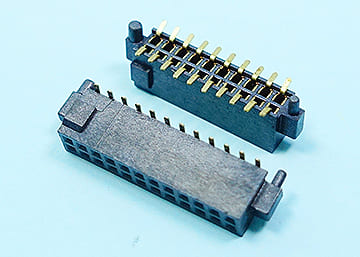

  • 1.27mm Female Pin Header H:4.3 W:3.0 SMT Dual Row With Size Positioning Columns

    LPCB127BTG X - 5 - 2xXX-SP 1.27mm Female Pin Header H:4.3 W:3.0 SMT Dual Row With Size Positioning Columns

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: LCP(Black)

    Inquiry Info. PDF

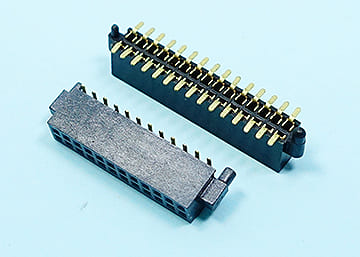

  • 1.27mm Female Pin Header H:4.3 W:3.0 SMT Dual Row With Bump &Size Positioning Columns

    LPCB127BTG X - 4.8 - 2xXX-BSP 1.27mm Female Pin Header H:4.3 W:3.0 SMT Dual Row With Bump &Size Positioning Columns

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: LCP(Black)

    Inquiry Info. PDF

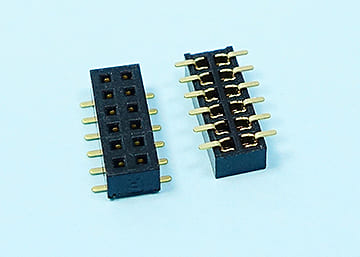

  • 1.27mm Female Pin Header H:2.0 W:3.0 SMT Type Dual Row

    LPCB127DTG X- 4.5-2xXX-X 1.27mm Female Pin Header H:2.0 W:3.0 SMT Type Dual Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon 6T(Black)

    Inquiry Info. PDF

  • 1.27mm Female Pin Header H:2.0 W:3.0 SMT Type Dual Row With Pegs

    LPCB127DTG X- 4.5-2xXX-P 1.27mm Female Pin Header H:2.0 W:3.0 SMT Type Dual Row With Pegs

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon 6T(Black)

    Inquiry Info. PDF

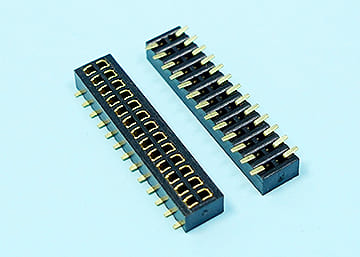

  • 1.27mm Female Pin Header H:2.0 W:3.4 SMT Type Dual Row (反插端子)

    LPCB127GTDG X- 4.5-2xXX 1.27mm Female Pin Header H:2.0 W:3.4 SMT Type Dual Row (反插端子)

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon 6T/LCP(Black)

    Inquiry Info. PDF

共計 13 項
