• SMT Type

    1.27mm (.050") Female Pin Header: 180° /Straight

    Specifications

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Contact Resistance :20 m ohms max.
    • Dielectric Withstanding:AC 500 V
    • Operating Temperature :-40℃ ～ +105℃
    • Soldering Temperature :260℃ for 3～5sec Max.
    • Insulator Material :Nylon 6T 、LCP (UL94V-0), Black.
    • Contact Material :Copper Alloy
    • Contact Plating :Tin,Gold(standard)

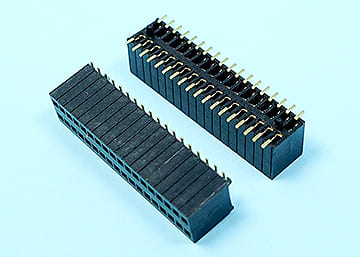

  • 1.27mm Female Pin Header H:5.8 W:5.1 SMT Type Dual Row

    LPCB127FTG X- 6.7-2xXX 1.27mm Female Pin Header H:5.8 W:5.1 SMT Type Dual Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon 6T(Black)

    Inquiry Info. PDF

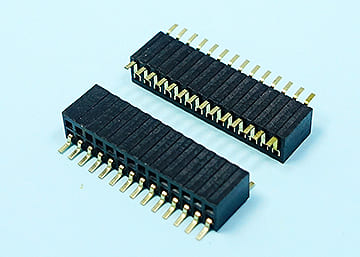

  • 1.27mm Female Pin Header H:5.8 W:5.1 SMT Type Dual Row With Pegs

    LPCB127FTG X- 6.7-2xXX-P 1.27mm Female Pin Header H:5.8 W:5.1 SMT Type Dual Row With Pegs

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon 6T(Black)

    Inquiry Info. PDF

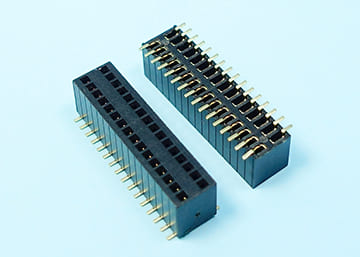

  • 1.27*1.27mm Female Pin Header H:3.45 W:4.83 SMT Side Enter Type Dual Row

    LPCB127ETEG X- 8-2xXX 1.27*1.27mm Female Pin Header H:3.45 W:4.83 SMT Side Enter Type Dual Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon 6T(Black)

    Inquiry Info. PDF
