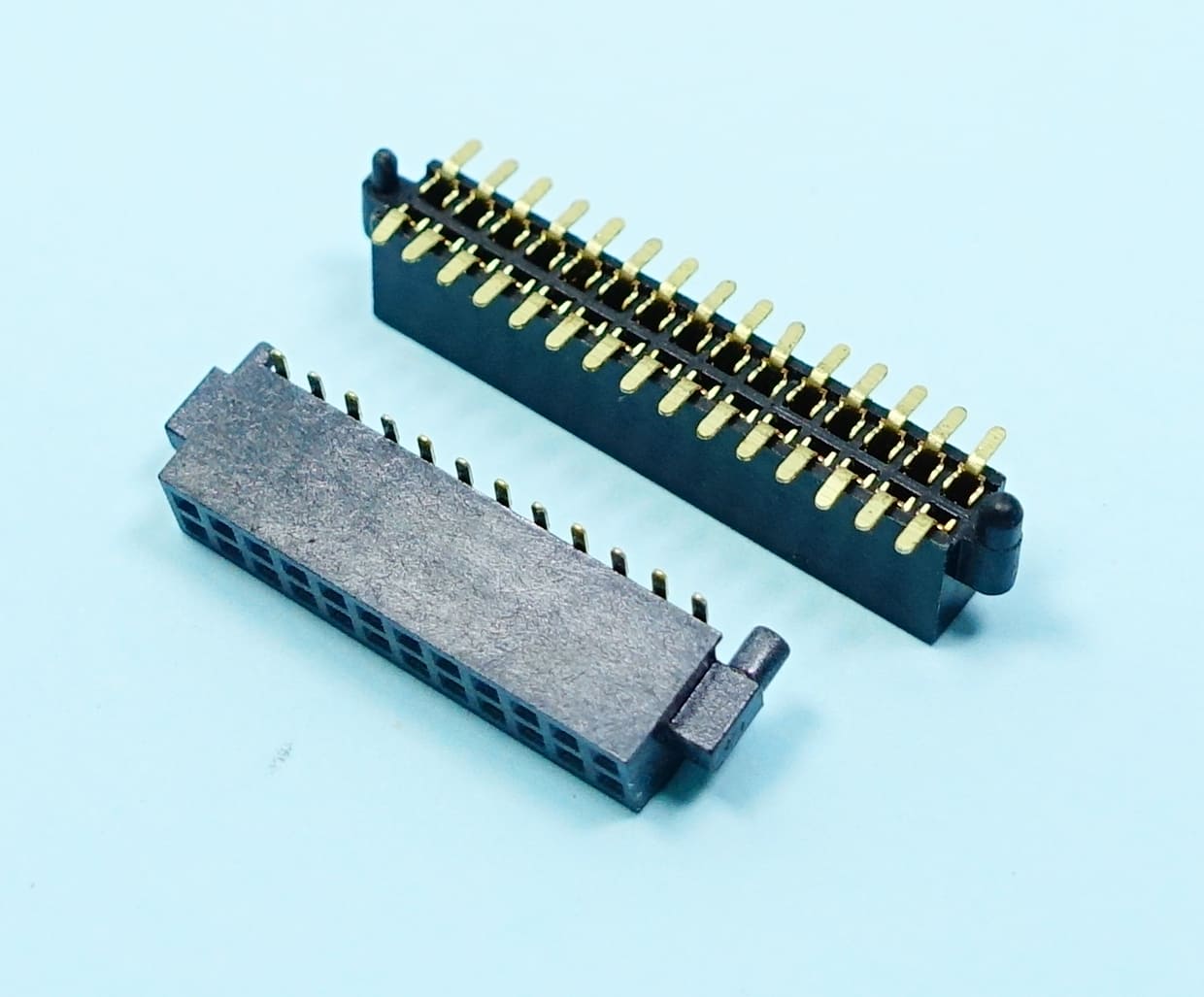

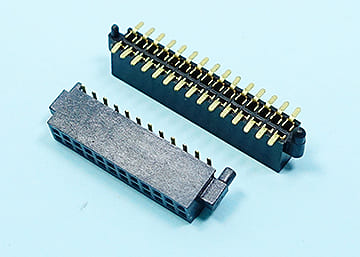

• LPCB127BTG X - 5 - 2xXX-SP 1.27mm Female Pin Header H:4.3 W:3.0 SMT Dual Row With Size Positioning Columns

    LPCB127BTG X - 5 - 2xXX-SP 1.27mm Female Pin Header H:4.3 W:3.0 SMT Dual Row With Size Positioning Columns

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: LCP(Black)
