• Micro Fit 300

    Micro Fit 300

    Specification:

    •  Current rating: 5A AC, DC
    •  Voltage rating: 250V AC, DC
    •  Contact resistance: 10m Max.
    • Dielectric withstanding voltage: 1500V AC/minute
    • Ambient temperature range: -25°C ~ 85°C

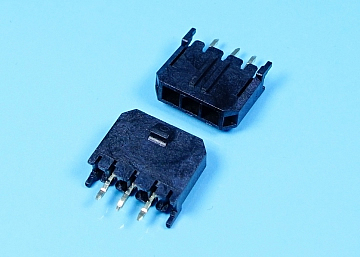

  • 3.0mm Pitch Single Row Wafer, DIP 180° With Peg

    LW-MF300S-XX-P 3.0mm Pitch Single Row Wafer, DIP 180° With Peg

    Specifications

    • 2 ~ 12 circuits available
    • Material: LCP UL 94-V0
    • .025"(0.625mm) square pins
    • Tin-plated brass pin
    • Mates with LH-MF3600M-xx housing
    • Standard color: Black
    • Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
    • Voltage rating: 250V
    • Contact resistance: 10mΩMax.
    • Dielectric strength: 1500V AC/minute
    • Temperature rise: 30°C max. (carry rated current load)

    Inquiry Info. PDF

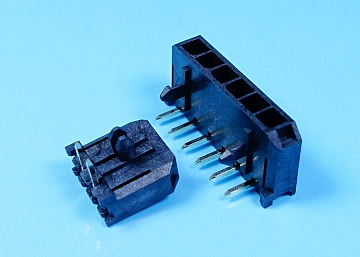

  • 3.0mm Pitch Single Row Wafer ,DIP 90° With Peg

    LW-MF300R-XX-P 3.0mm Pitch Single Row Wafer ,DIP 90° With Peg

    Specifications

    • 2 ~ 12 circuits available
    • Material: LCP UL 94-V0
    • .025"(0.625mm) square pins
    • Tin-plated brass pin
    • Mates with LH-MF300M-xx housing
    • Standard color: Black
    • Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
    • Voltage rating: 250V
    • Contact resistance: 10mΩMax.
    • Dielectric strength: 1500V AC/minute
    • Temperature rise: 30°C max. (carry rated current load)

    Inquiry Info. PDF

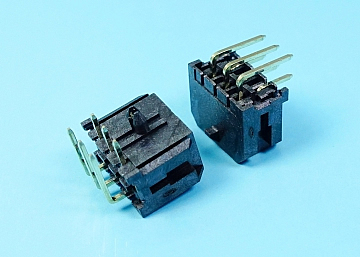

  • 3.0mm Pitch Dual Row Wafer ,DIP 90° With Peg

    LW-MF300R-2xXX-P 3.0mm Pitch Dual Row Wafer ,DIP 90° With Peg

    Specifications

    • 2 ~ 24 circuits available
    • Material: LCP UL 94-V0
    • .0246"(0.625mm) square pins
    • Tin-plated brass pin
    • Mates with LH-MF300M-2xXX housing
    • Standard color: Black
    • Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
    • Voltage rating: 250V
    • Contact resistance: 10mΩMax.
    • Dielectric strength: 1500V AC/minute
    • Temperature rise: 30°C max. (carry rated current load)

    Inquiry Info. PDF

  • 3.0mm Pitch Dual Row Wafer, DIP 180° With Peg

    LW-MF300R-2xXX-P 3.0mm Pitch Dual Row Wafer, DIP 180° With Peg

    Specifications

    • 2 ~ 24 circuits available
    • Material: LCP UL 94-V0
    • .0246"(0.625mm) square pins
    • Tin-plated brass pin
    • Mates with LH-MF300M-2xXX housing
    • Standard color: Black
    • Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
    • Voltage rating: 250V
    • Contact resistance: 10mΩMax.
    • Dielectric strength: 1500V AC/minute
    • Temperature rise: 30°C max. (carry rated current load)

    Inquiry Info. PDF

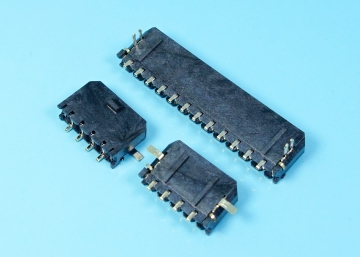

  • 3.0mm Pitch Single Row Wafer, SMT 180°

    LW-MF300S-XX-S__(I) 3.0mm Pitch Single Row Wafer, SMT 180°

    Specifications

    • 2 ~ 12 circuits available
    • Material: LCP
    • Tin-plated brass pin
    • Mates with LH-MF300M-XX housing
    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Contact resistance: 10mΩ Max.
    • Dielectric withstanding voltage: 1500V AC/minute
    • Ambient temperature range: -25°C~85°C

    Inquiry Info. PDF

  • 3.0mm Pitch Single Row Wafer, SMT 90°

    LW-MF300R-XX-S__ 3.0mm Pitch Single Row Wafer, SMT 90°

    Specifications

    • 2 ~ 12 circuits available
    • Material: LCP
    • Tin-plated brass pin
    • Mates with LH-MF300M-XX housing
    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Contact resistance: 10mΩ Max.
    • Dielectric withstanding voltage: 1500V AC/minute
    • Ambient temperature range: -25°C~85°C

    Inquiry Info. PDF

  • 3.0mm Pitch Dual Row Wafer, SMT 180°

    LW-MF300S-2xXX-S__(I) 3.0mm Pitch Dual Row Wafer, SMT 180°

    Specifications

    • 2 ~ 24 circuits available
    • Material: LCP
    • Tin-plated brass pin
    • Mates with LH-MF300M-2xXX housing
    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Contact resistance: 10mΩ Max.
    • Dielectric withstanding voltage: 1500V AC/minute
    • Ambient temperature range: -25°C~85°C

    Inquiry Info. PDF

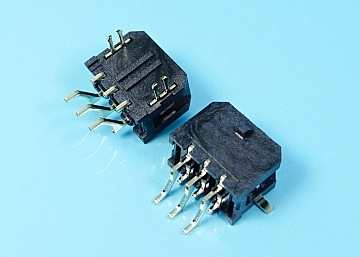

  • 3.0mm Pitch Dual Row Wafer ,SMT 90°

    LW-MF300R-2xXX-S__ 3.0mm Pitch Dual Row Wafer ,SMT 90°

    Specifications

    • 2 ~ 24 circuits available
    • Material: LCP
    • Tin-plated brass pin
    • Mates with LH-MF300M-2xXX housing
    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Contact resistance: 10mΩ Max.
    • Dielectric withstanding voltage: 1500V AC/minute
    • Ambient temperature range: -25°C~85°C

    Inquiry Info. PDF

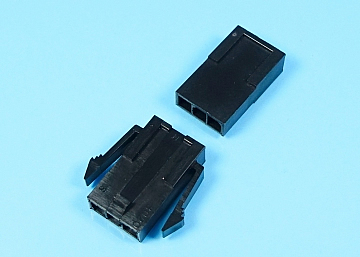

  • 3.0mm Pitch Single Row Crimp Terminal Housing ,Plug

    LH-MF300F-XX-( E ) 3.0mm Pitch Single Row Crimp Terminal Housing ,Plug

    Specifications

    • 2 ~ 12 circuits available
    • Material: UL 94V-0 nylon 66
    • Accepts LT-MF300_M_ terminal
    • Mates with LH-MF300M-XX housing
    • Standard color: Black
    • Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
    • Voltage rating: 250V AC(RMS) or DC
    • Contact resistance: 10mΩMax.
    • Dielectric strength: 1500V AC/minute
    • Temperature rise: 30°C max. (carry rated current load)

    Inquiry Info. PDF

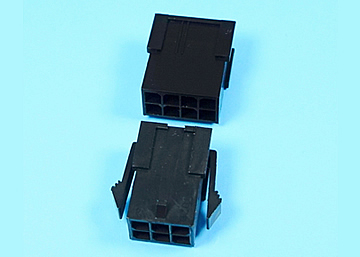

  • 3.0mm Pitch Dual Row Crimp Terminal Housing ,Plug

    LH-MF300F-2xXX-( E ) 3.0mm Pitch Dual Row Crimp Terminal Housing ,Plug

    Specifications

    • 2 ~ 24 circuits available
    • Material: UL 94V-0 nylon 66
    • Accepts LT-MF300_M_ terminal
    • Mates with LH-MF300M-2xXX housing
    • Standard color: Black
    • Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
    • Voltage rating: 250V AC(RMS) or DC
    • Contact resistance: 10mΩMax.
    • Dielectric strength: 1500V AC/minute
    • Temperature rise: 30°C max. (carry rated current load)

    Inquiry Info. PDF

共計 14 項
