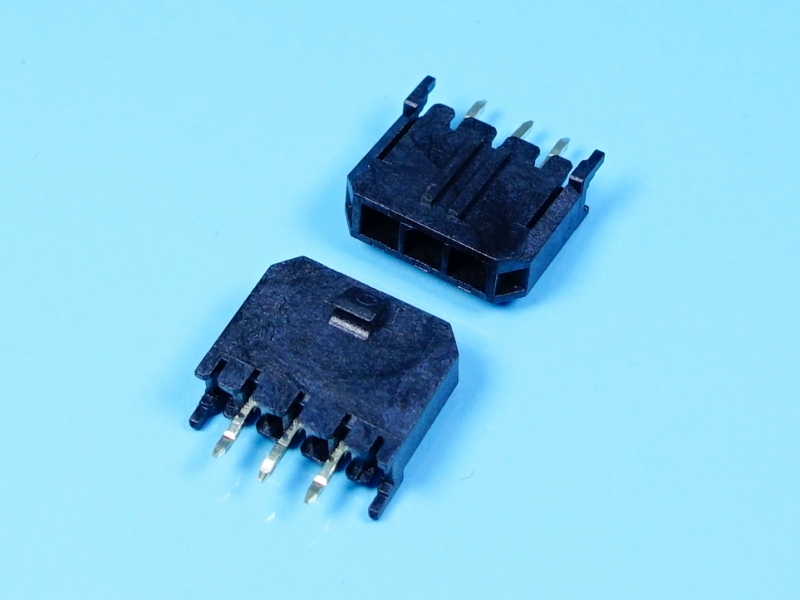

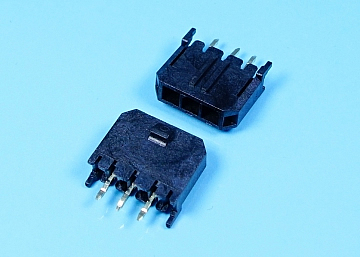

LW-MF300S-XX-P 3.0mm Pitch Single Row Wafer, DIP 180° With Peg

Specifications

• 2 ~ 12 circuits available
• Material: LCP UL 94-V0
• .025"(0.625mm) square pins
• Tin-plated brass pin
• Mates with LH-MF3600M-xx housing
• Standard color: Black
• Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
• Voltage rating: 250V
• Contact resistance: 10mΩMax.
• Dielectric strength: 1500V AC/minute
• Temperature rise: 30°C max. (carry rated current load)
