• SMT Type

  • 0.80*1.20mm Female Header H:3.12 W:3.18 SMT Type Dual Row

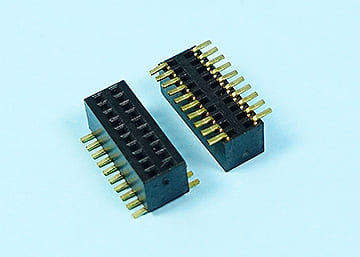

    LPCB080ATG C-4.9-2xXX 0.80*1.20mm Female Header H:3.12 W:3.18 SMT Type Dual Row

    Specifications

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Plating: All Gold or Tin
    • Standard: Gold Flash all over
    • Insulator Material: High Temperature Thermoplastic. UL 94V-0
    • Standard: LCP(Black)

    Inquiry Info. PDF

  • 1.00mm Female Header H:2.05 W:2.55 SMT Type Dual Row

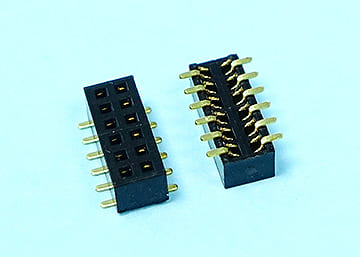

    LPCB100ATG X-3.8-2xXX 1.00mm Female Header H:2.05 W:2.55 SMT Type Dual Row

    Specifications

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Plating: All Gold or Tin
    • Standard: Gold Flash all over
    • Insulator Material: High Temperature Thermoplastic. UL 94V-0
    • Standard: Nylon-6T(Black)

    Inquiry Info. PDF

共計 2 項
