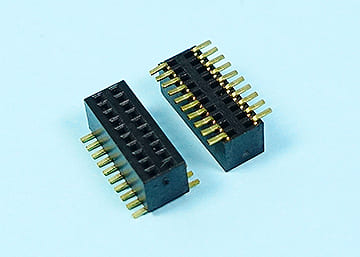

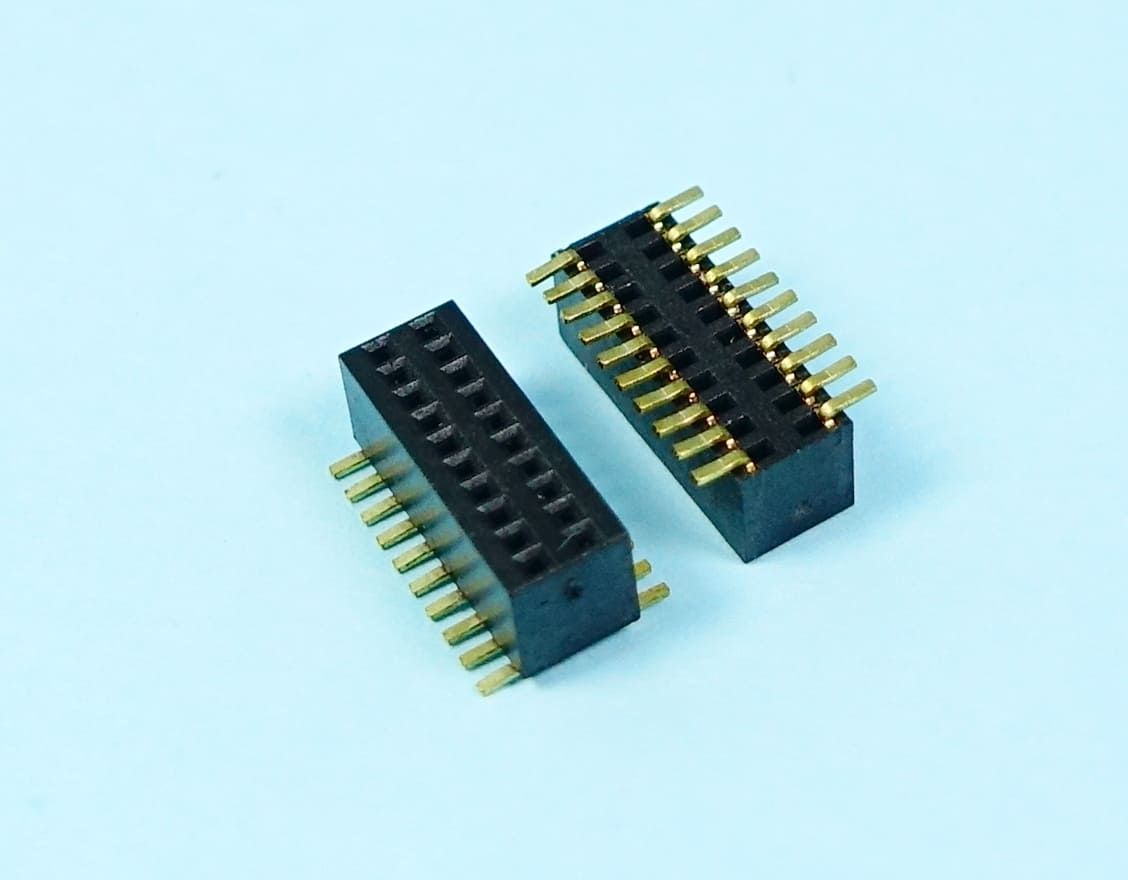

LPCB080ATG C-4.9-2xXX 0.80*1.20mm Female Header H:3.12 W:3.18 SMT Type Dual Row

Specifications

• Current Rating: 0.8 Amp
• Insulator Resistance: 900 Megohms Min.
• Contact Resistance: 20 m ohms max.
• Dielectric Withstanding: AC 500 V
• Operating Temperature: -40°C ～ +105℃
• Soldering Temperature: 260℃ for 3～5sec Max.
• Contact Material: Phosphor Bronze
• Plating: All Gold or Tin
• Standard: Gold Flash all over
• Insulator Material: High Temperature Thermoplastic. UL 94V-0
• Standard: LCP(Black)
