• 180ﾟ Type

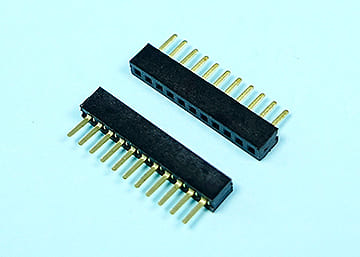

  • 1.00mm Female Header H:2.0 W:1.5 DIP:2.0 Straight Single Row

    LPCB100ASG X2-1xXX 1.00mm Female Header H:2.0 W:1.5 DIP:2.0 Straight Single Row

    Specifications

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Plating: All Gold or Tin
    • Standard: Gold Flash all over
    • Insulator Material: High Temperature Thermoplastic. UL 94V-0
    • Standard: Nylon-6T(Black)
