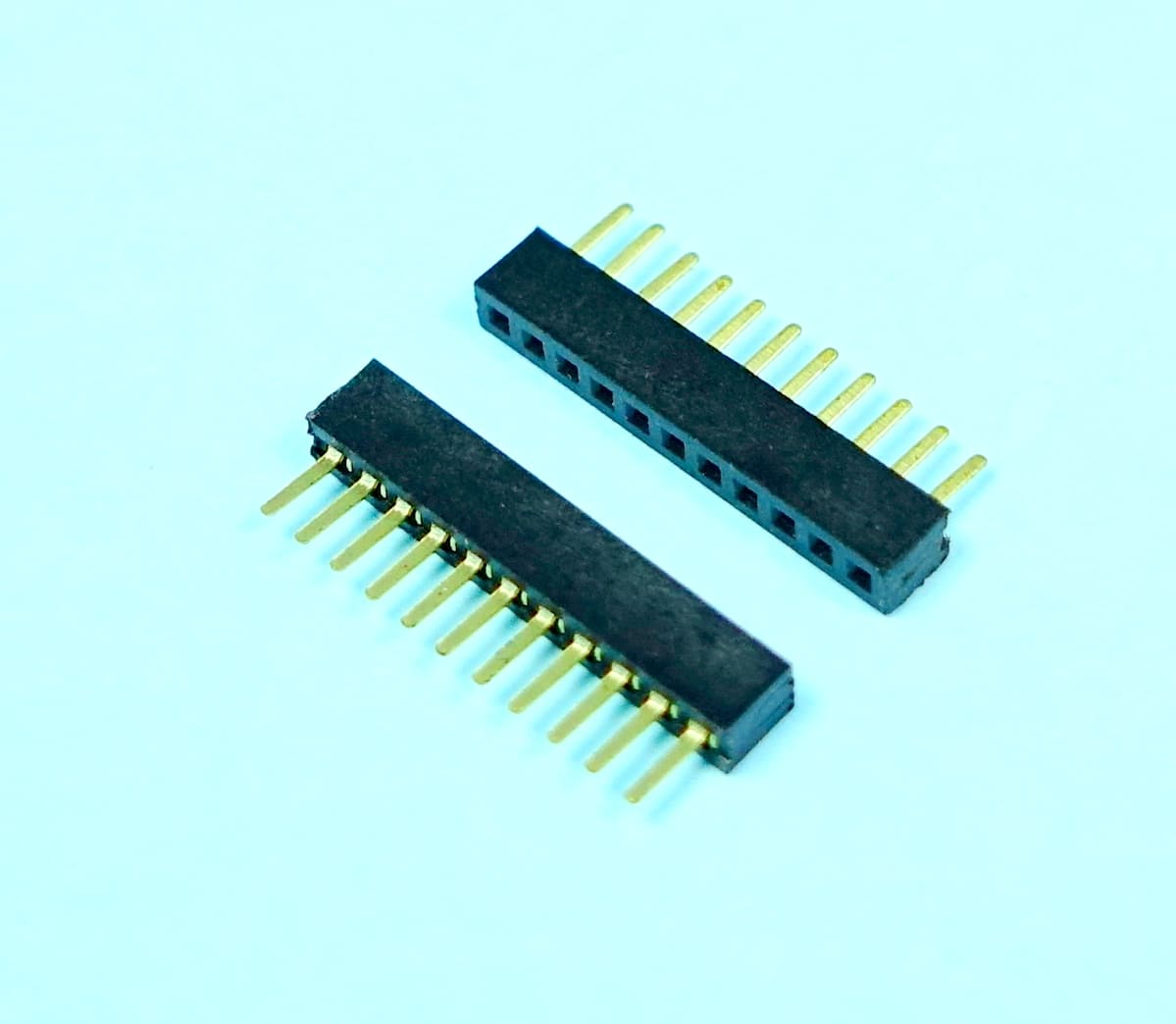

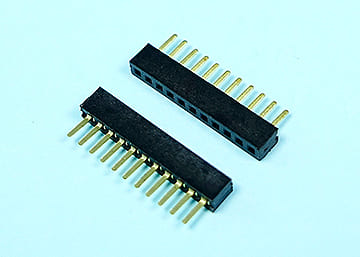

LPCB100ASG X2-1xXX 1.00mm Female Header H:2.0 W:1.5 DIP:2.0 Straight Single Row

Specifications

• Current Rating: 0.8 Amp
• Insulator Resistance: 900 Megohms Min.
• Contact Resistance: 20 m ohms max.
• Dielectric Withstanding: AC 500 V
• Operating Temperature: -40°C ～ +105℃
• Soldering Temperature: 260℃ for 3～5sec Max.
• Contact Material: Phosphor Bronze
• Plating: All Gold or Tin
• Standard: Gold Flash all over
• Insulator Material: High Temperature Thermoplastic. UL 94V-0
• Standard: Nylon-6T(Black)
