• 2.0mm

    2.0mm

    Specifications

    Material And Finish

    • Housing: Thermoplastic, UL94V-0, Color-Black.
    • Terminal: Sq 0.50mm, Brass, Gold Plating.
      　

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 800V AC RMS for 60Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

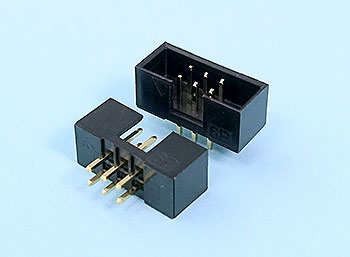

  • 2.0 mm Pitch Box Header H:5.6 Straight Type

    LBH200S-XX 2.0 mm Pitch Box Header H:5.6 Straight Type

    Specifications

    Material And Finish

    • Housing: Thermoplasic (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

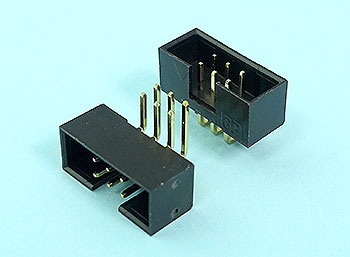

  • 2.0 mm Pitch Box Header H:5.6 Right Angle Type

    LBH200R-XX 2.0 mm Pitch Box Header H:5.6 Right Angle Type

    Specifications

    Material And Finish

    • Housing: Thermoplasic (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

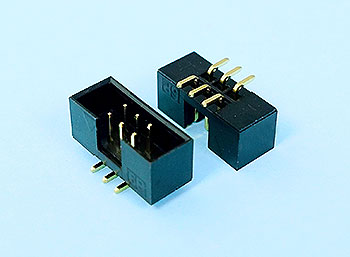

  • 2.0 mm Pitch Box Header H:5.6 SMT(7.5) Type

    LBH200T-XX 2.0 mm Pitch Box Header H:5.6 SMT(7.5) Type

    Specifications

    Material And Finish

    • Housing: Thermoplasic (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

  • 2.0 mm Pitch Box Header H:6.4 Straight Type (Mox)

    LBHM200S-XX 2.0 mm Pitch Box Header H:6.4 Straight Type (Mox)

    Specifications

    Material And Finish

    • Housing: Nylon-6T (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Brass, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

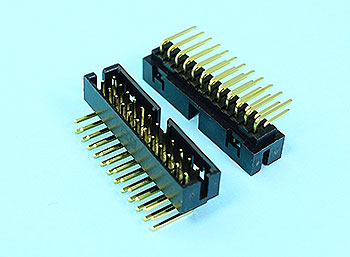

  • 2.0 mm Pitch Box Header H:6.4 Right Angle Type(Mox )

    LBHM200R-XX 2.0 mm Pitch Box Header H:6.4 Right Angle Type(Mox )

    Specifications

    Material And Finish

    • Housing: Nylon-6T (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Brass, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

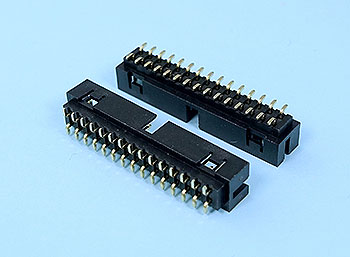

  • 2.0 mm Pitch Box Header H:6.4 SMT(5.3) Type (Mox )

    LBHM200T-XX 2.0 mm Pitch Box Header H:6.4 SMT(5.3) Type (Mox )

    Specifications

    Material And Finish

    • Housing: Nylon-6T (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Brass, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

共計 6 項
