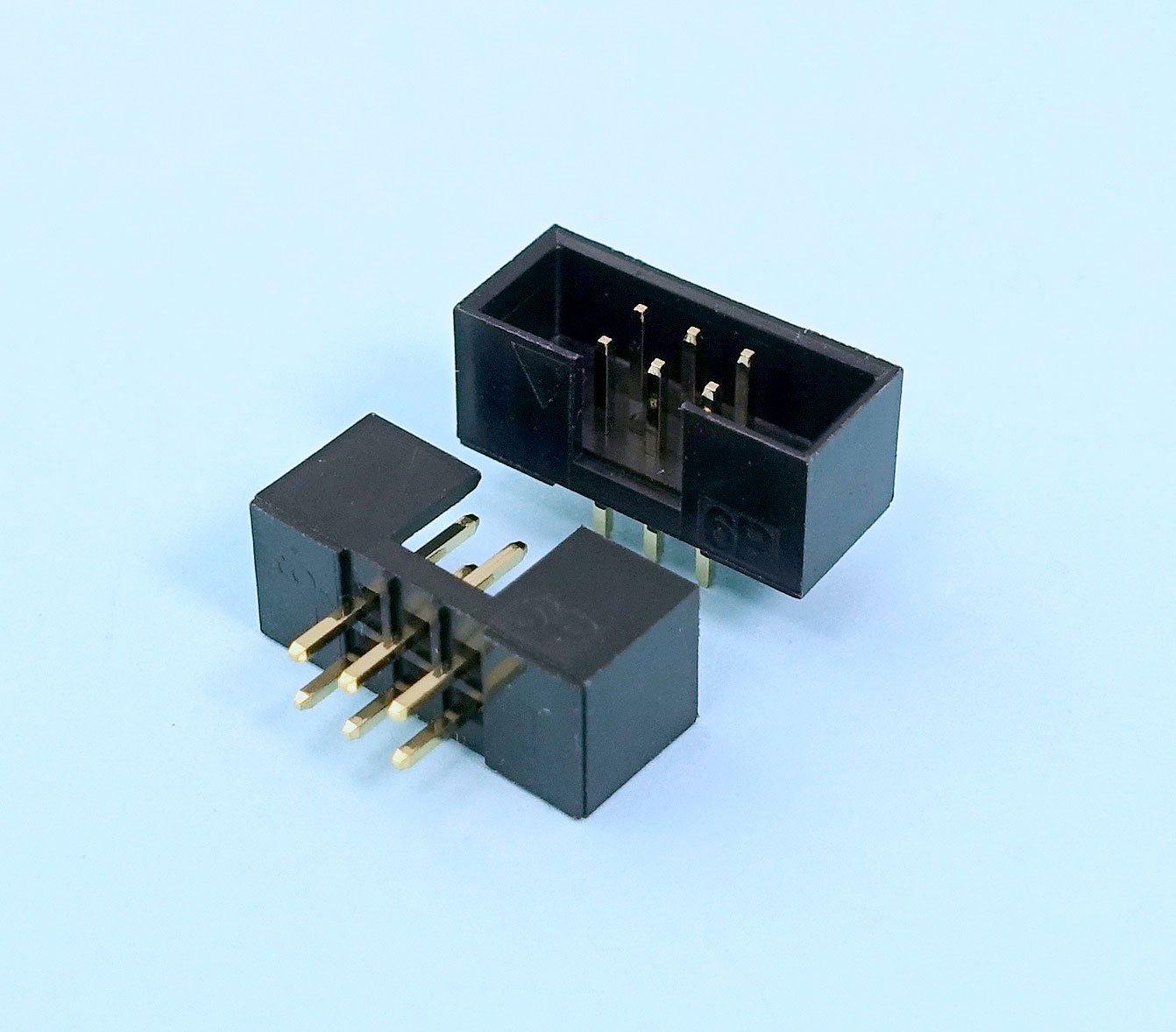

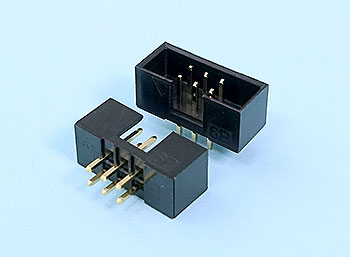

• LBH200S-XX 2.0 mm Pitch Box Header H:5.6 Straight Type

    LBH200S-XX 2.0 mm Pitch Box Header H:5.6 Straight Type

    Specifications

    Material And Finish

    • Housing: Thermoplasic (UL94V-0),Black.
    • Terminal: Sq. 0.50mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 800V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.
