• 2.54mm

    2.54mm

    Specifications

    Material And Finish

    • Housing: Thermoplastic, UL94V-0, Color-Black.
    • Terminal: Sq 0.64mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 3 Amp. Max.
    • Dielectric Withstanding Voltage: 1000V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 1000V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.
  • 2.54 mm Pitch Box Header With Latches Straight Type

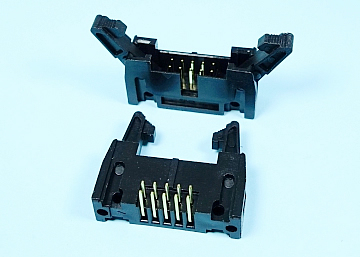

    LBHE254S-XX 2.54 mm Pitch Box Header With Latches Straight Type

    Specifications

    Material And Finish

    • Housing: Thermoplastic, UL94V-0, Color-Black.
    • Terminal: Sq 0.64mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 3 Amp. Max.
    • Dielectric Withstanding Voltage: 1000V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 1000V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF

  • 2.54 mm Pitch Box Header With Latches Right Angle Type

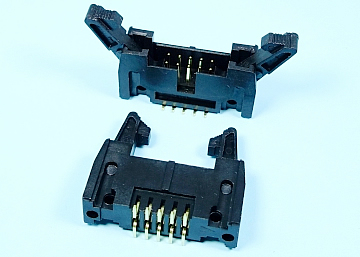

    LBHE254R-XX 2.54 mm Pitch Box Header With Latches Right Angle Type

    Specifications

    Material And Finish

    • Housing: Thermoplastic, UL94V-0, Color-Black.
    • Terminal: Sq 0.64mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 3 Amp. Max.
    • Dielectric Withstanding Voltage: 1000V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 1000V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +150°C.

    Inquiry Info. PDF

  • 2.54 mm Pitch Box Header With Latches SMT Type

    LBHE254T-XX 2.54 mm Pitch Box Header With Latches SMT Type

    Specifications

    Material And Finish

    • Housing: Nylon 6T, UL94V-0, Color-Black.
    • Terminal: Sq 0.64mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 3 Amp. Max.
    • Dielectric Withstanding Voltage: 1000V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 1000V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +150°C.

    Inquiry Info. PDF
