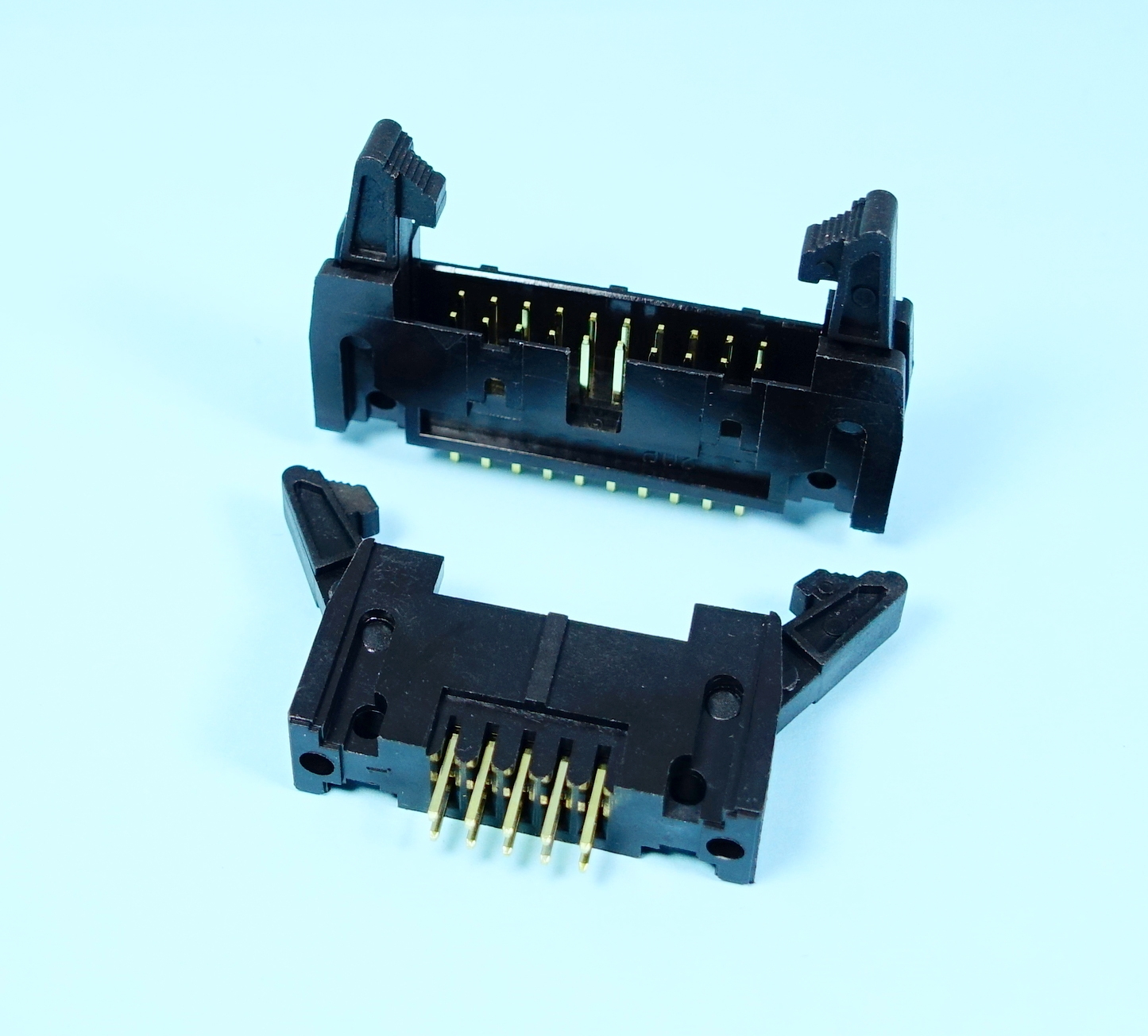

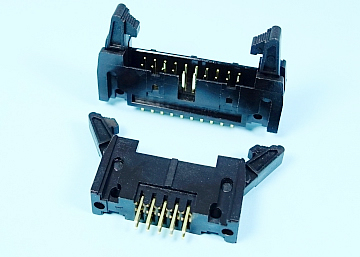

LBHE254S-XX 2.54 mm Pitch Box Header With Latches Straight Type

Specifications

Material And Finish

• Housing: Thermoplastic, UL94V-0, Color-Black.
• Terminal: Sq 0.64mm, Brass, Gold Plating.


Electrical Characteristics

• Current Rating: 3 Amp. Max.
• Dielectric Withstanding Voltage: 1000V AC RMS for 60 Seconds.
• Insulator Resistance: 1000M Ohms Min at 1000V DC.


Mechanical Characteristics

• Operation Temperature: -55°C to +105°C.
