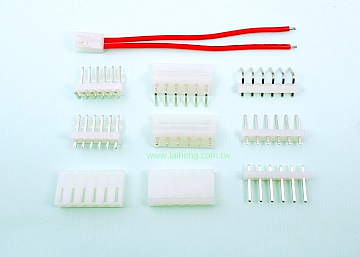

• MOX396

    MOX396

    Specification:

    • Current Rating : 5A AC, DC
    • Voltage Rating : 250V AC, DC
    • Operating Temp. : -25°C ~ +85°C
    • Insulation Resistance : 1000MΩ/ min.
    • Dielectric Withstanding Voltage : 1500V AC/ min.
    • Contact Resistance : 10mΩ/ max.

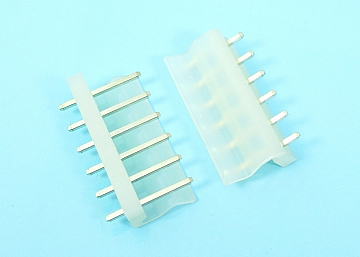

  • 3.96mm Pitch Single Row Wafer, 180° DIP

    LW-MX396S-XX 3.96mm Pitch Single Row Wafer, 180° DIP

    Specifications

    Electrical

    • Current Rating : 5A AC, DC
    • Voltage Rating : 250V AC, DC
    • Operating Temp. : -25°C ~ +85°C
    • Insulation Resistance : 1000MΩ/ min.
    • Dielectric Withstanding Voltage : 1500V AC/ min.
    • Contact Resistance : 10mΩ/ max.


    Material

    • Material : Nylon66, UL94V-2
    • Terminal Material : Brass / Tin-plated

    Inquiry Info. PDF

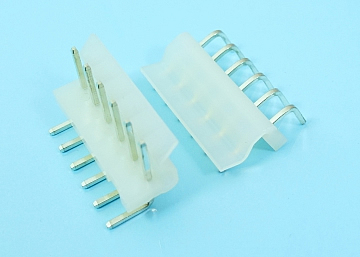

  • 3.96mm Pitch Single Row Wafer , 90° DIP

    LW-MX396R-XX 3.96mm Pitch Single Row Wafer , 90° DIP

    Specifications

    Electrical

    • Current Rating : 5A AC, DC
    • Voltage Rating : 250V AC, DC
    • Operating Temp. : -25°C ~ +85°C
    • Insulation Resistance : 1000MΩ/ min.
    • Dielectric Withstanding Voltage : 1500V AC/ min.
    • Contact Resistance : 10mΩ/ max.


    Material

    • Material : Nylon66, UL94V-2
    • Terminal Material : Brass / Tin-plated

    Inquiry Info. PDF

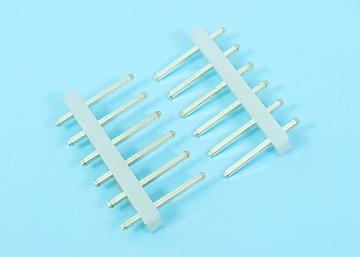

  • 3.96mm Pitch Single Row Wafer, 180° DIP

    LW-MX3960S-XX 3.96mm Pitch Single Row Wafer, 180° DIP

    Specifications

    Electrical

    • Current Rating : 5A AC, DC
    • Voltage Rating : 250V AC, DC
    • Operating Temp. : -25°C ~ +85°C
    • Insulation Resistance : 1000MΩ/ min.
    • Dielectric Withstanding Voltage : 1500V AC/ min.
    • Contact Resistance : 10mΩ/ max.


    Material

    • Material : Nylon66, UL94V-2
    • Terminal Material : Brass / Tin-plated

    Inquiry Info. PDF

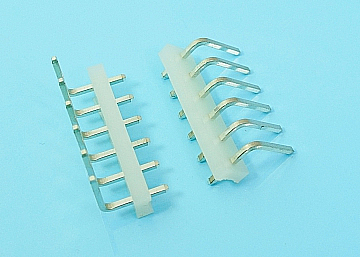

  • 3.96mm Pitch Single Row Wafer , 90° DIP

    LW-MX3960R-XX 3.96mm Pitch Single Row Wafer , 90° DIP

    Specifications

    Electrical

    • Current Rating : 5A AC, DC
    • Voltage Rating : 250V AC, DC
    • Operating Temp. : -25°C ~ +85°C
    • Insulation Resistance : 1000MΩ/ min.
    • Dielectric Withstanding Voltage : 1500V AC/ min.
    • Contact Resistance : 10mΩ/ max.


    Material

    • Material : Nylon66, UL94V-2
    • Terminal Material : Brass / Tin-plated

    Inquiry Info. PDF

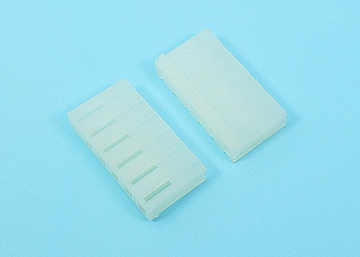

  • 3.96mm Pitch Single Row Crimp Terminal Housing

    LH-MX396-XX 3.96mm Pitch Single Row Crimp Terminal Housing

    Specifications

    Electrical

    • Current Rating : 5A AC, DC
    • Voltage Rating : 250V AC, DC
    • Operating Temp. : -25°C ~ +85°C
    • Insulation Resistance : 1000MΩ/ min.
    • Dielectric Withstanding Voltage : 1500V AC/ min.
    • Contact Resistance : 10mΩ/ max.


    Material

    • Material : Nylon66, UL94V-2

    Inquiry Info. PDF

共計 5 項
