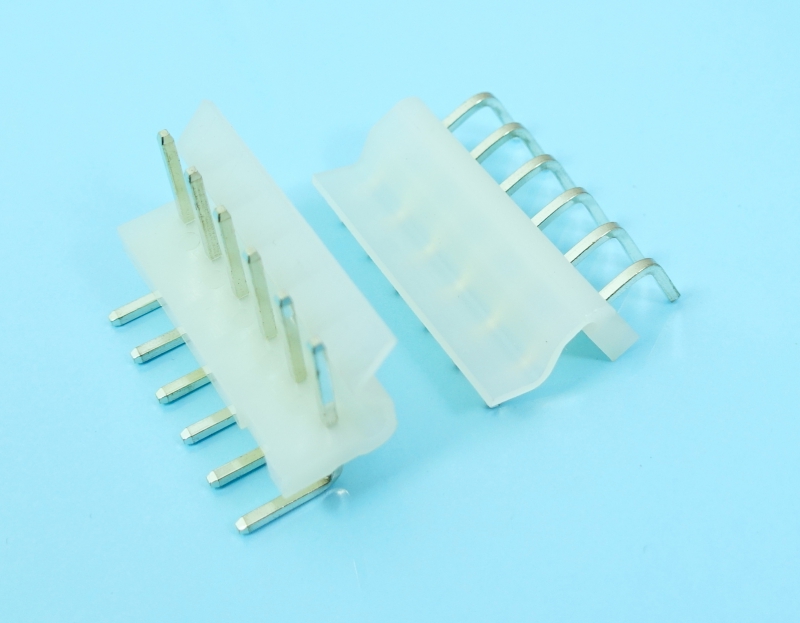

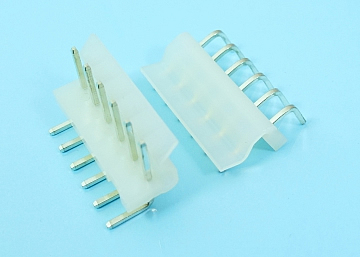

Product Wire To Board Connectors Wire to Board Connectors 3.96mm Pitch MOX396 LW-MX396R-XX 3.96mm Pitch Single Row Wafer , 90° DIP Specifications Electrical Current Rating : 5A AC, DC Voltage Rating : 250V AC, DC Operating Temp. : -25°C ~ +85°C Insulation Resistance : 1000MΩ/ min. Dielectric Withstanding Voltage : 1500V AC/ min. Contact Resistance : 10mΩ/ max. Material Material : Nylon66, UL94V-2 Terminal Material : Brass / Tin-plated PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
