• VH396

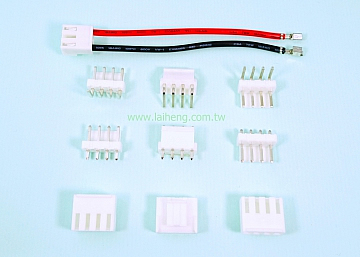

    VH396

    Specification:

    • Current Rating: 7A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    •  Insulation Resistance: 1000MΩ Min
    •  Dielectric Withstanding Voltage: 1500V AC,DC Min

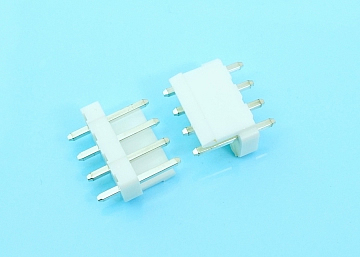

  • 3.96mm Pitch Single Row Wafer, 180° DIP

    LW-VH396S-XX 3.96mm Pitch Single Row Wafer, 180° DIP

    Specifications

    • Current Rating: 7A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Dielectric Withstanding Voltage: 1500V AC,DC Min
    • Terminal Material: Brass / Tin-plated
    • Plating: Tin plated
    • Material: Nylon 66, UL94V-0
    • Color: White

    Inquiry Info. PDF

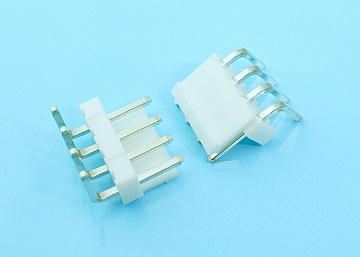

  • 3.96mm Pitch Single Row Wafer ,90° DIP

    LW-VH396R-XX 3.96mm Pitch Single Row Wafer ,90° DIP

    Specifications

    • Current Rating: 7A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Dielectric Withstanding Voltage: 1500V AC,DC Min
    • Terminal Material: Brass / Tin-plated
    • Plating: Tin plated
    • Material: Nylon 66, UL94V-0
    • Color: White

    Inquiry Info. PDF

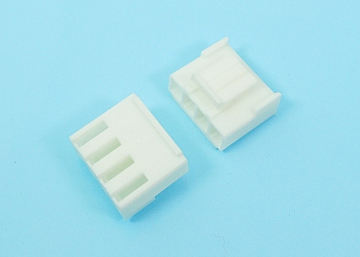

  • 3.96mm Pitch Single Row Crimp Terminal Housing

    LH-VH396-XX 3.96mm Pitch Single Row Crimp Terminal Housing

    Specifications

    • Current Rating: 7A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Terminal Material: Brass / Tin-plated
    • Material: Nylon 66, UL94V-0

    Inquiry Info. PDF
