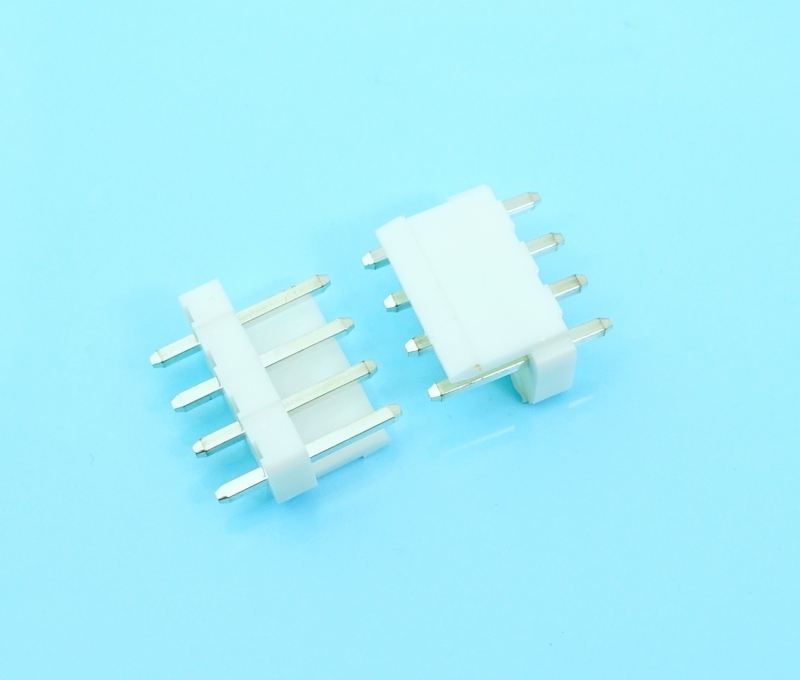

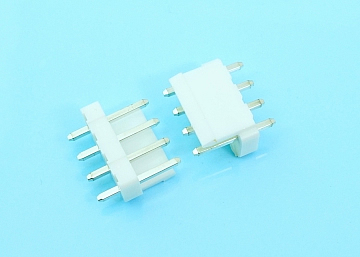

Product Wire To Board Connectors Wire to Board Connectors 3.96mm Pitch VH396 LW-VH396S-XX 3.96mm Pitch Single Row Wafer, 180° DIP Specifications Current Rating: 7A AC, DC Voltage Rating: 250V AC Maximum Operating Temp: -25°C ~ +85°C Contact Resistance: 10mΩ Max Insulation Resistance: 1000MΩ Min Dielectric Withstanding Voltage: 1500V AC,DC Min Terminal Material: Brass / Tin-plated Plating: Tin plated Material: Nylon 66, UL94V-0 Color: White PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
