• 2.00mm

    2.00mm

  • 2.00mm SIP SOCKET Single Row Round Pin

    LSIP200-1xXX 2.00mm SIP SOCKET Single Row Round Pin

    Specifications


    Material

    • Insulator body (housing): PPS, UL94-V0, Color-Black.
    • Pin (outer sleeve): Brass, machined.
    • Tin plated: 50u" nickel,200u" Tin plated..
    • Clip (6 finger): Beryllium copper.
    • Gold plated:50u" nickel/full Gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Contact resistance:5mΩ / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V Min.
    • Operating: 60V Ac/Dc.


    Mechanical:

    • Operating temperature:Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +260℃ 10s max.

    Inquiry Info. PDF

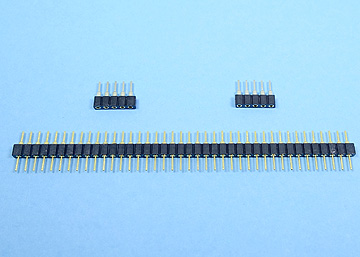

  • LSIP200-1xXXGO 2.00mm SIP SOCKET Single Row Round Pin (Gold Plated)

    Specifications


    Material

    • Insulator body (housing): PPS, UL94-V0, Color-Black.
    • Pin (outer sleeve): Brass, machined.
    • Gold plated: 50u" nickel/full Gold-flash.
    • Clip (6 finger): Beryllium copper.
    • Gold plated:50u" nickel/full Gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Contact resistance:5mΩ / contact max.
    • Insulation resistance: > 1000 MΩ at V=100V Min.
    • Operating: 60V Ac/Dc.


    Mechanical:

    • Operating temperature:Gold plated: -55℃ to +125℃.
    • Tin plated: -40℃ to +105℃.
    • Soldering temperature: +260℃ 10s max.

    Inquiry Info. PDF

  • 2.00mm Machined Pin Header Single Row (Gold Plated)

    LSIP200M-1xXXGO 2.00mm Machined Pin Header Single Row (Gold Plated)

    Specifications


    Material

    • Insulator body(housing):PPS (black/UL94V-0).
    • Pin : Brass, machined.
    • Plating:Gold plated:2um/80u"nickel/full gold-flashed.


    Electrical:

    • Current rating: 3 Amps / contact max.
    • Operating: 60 Veff.
    • Insulation resistance: > 1000 MΩ at V=100V.


    Mechanical:

    • Operating temperature: Gold plated: -55℃ to +125℃.
    • Soldering temperature:+260℃,10s max.

    Inquiry Info. PDF
