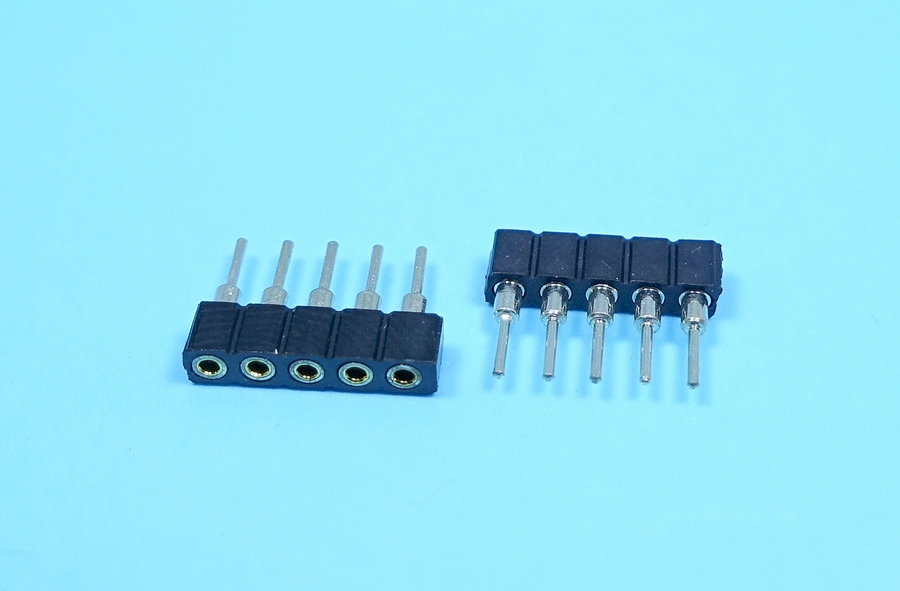

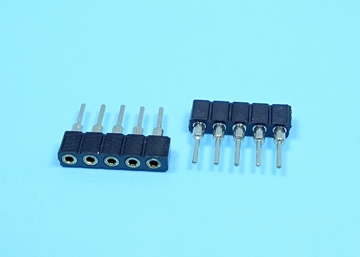

LSIP200-1xXX 2.00mm SIP SOCKET Single Row Round Pin

Specifications


Material

• Insulator body (housing): PPS, UL94-V0, Color-Black.
• Pin (outer sleeve): Brass, machined.
• Tin plated: 50u" nickel,200u" Tin plated..
• Clip (6 finger): Beryllium copper.
• Gold plated:50u" nickel/full Gold-flashed.


Electrical:

• Current rating: 3 Amps / contact max.
• Contact resistance:5mΩ / contact max.
• Insulation resistance: > 1000 MΩ at V=100V Min.
• Operating: 60V Ac/Dc.


Mechanical:

• Operating temperature:Gold plated: -55℃ to +125℃.
• Tin plated: -40℃ to +105℃.
• Soldering temperature: +260℃ 10s max.
