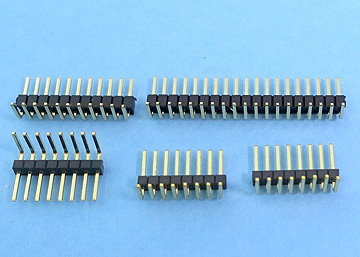

• 90ﾟ Type

    90ﾟ Type

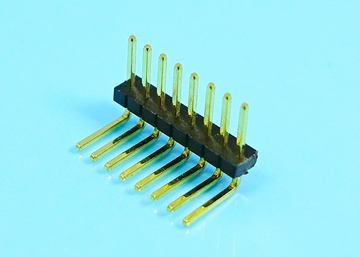

  • 1.27mm Pin Header H:1.0 W:2.1 Single Row Up Angle DIP Type

    LP∕H127UGN a／c A b -1xXX 1.27mm Pin Header H:1.0 W:2.1 Single Row Up Angle DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000Megohms Min.
    • Operating Temperature : -55°C to +105°C


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester,UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • 1.27mm Pin Header H:1.0 W:2.1 Single Row Down Angle DIP Type

    LP∕H127RGN a A c／b -1xXX 1.27mm Pin Header H:1.0 W:2.1 Single Row Down Angle DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester,UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • 1.27mm Pin Header H:1.5 W:2.1 Single Row Down Angle DIP Type

    LP∕H127RGN a B c／b -1xXX 1.27mm Pin Header H:1.5 W:2.1 Single Row Down Angle DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester,UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP∕H127UGN a A d／c A b -1xXX 1.27mm Pin Header H:1.0 W:2.1 Single Row Dual Base Up Angle DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester,UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP∕H127RGN a A d A c／b -1xXX 1.27mm Pin Header H:1.0 W:2.1 Single Row Dual Base Down Angle DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester,UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

共計 5 項
