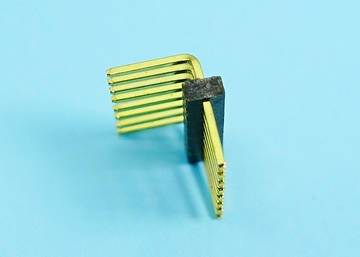

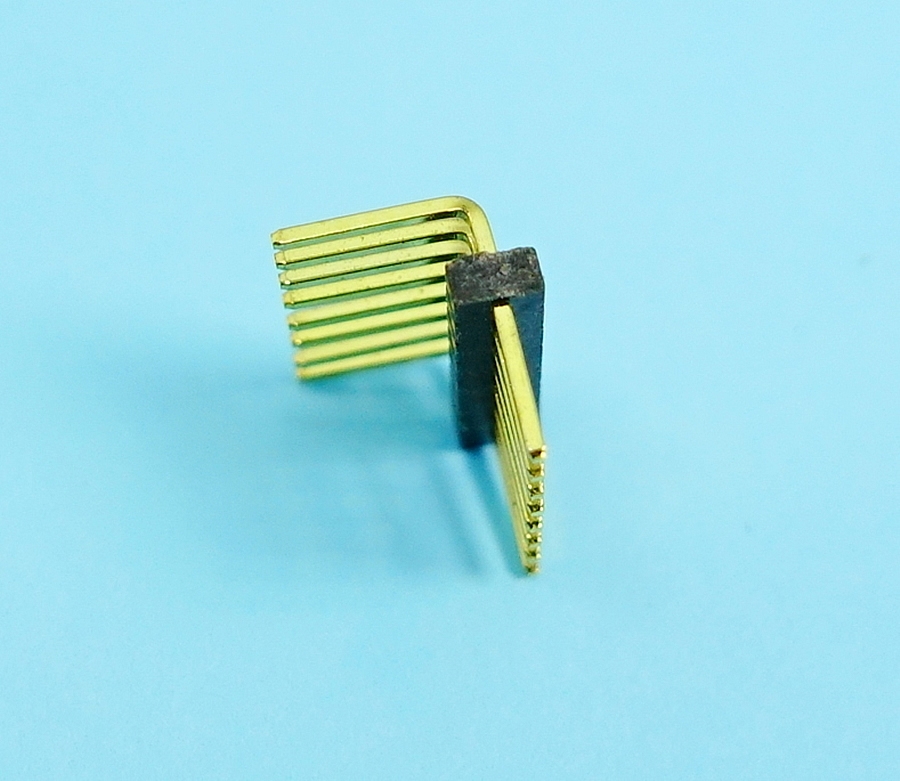

• LP∕H127UGN a／c A b -1xXX 1.27mm Pin Header H:1.0 W:2.1 Single Row Up Angle DIP Type

    LP∕H127UGN a／c A b -1xXX 1.27mm Pin Header H:1.0 W:2.1 Single Row Up Angle DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000Megohms Min.
    • Operating Temperature : -55°C to +105°C


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester,UL94V-0, NYLON 6T
    • Plating : All Gold or Tin
