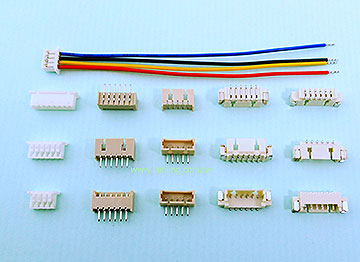

• MOX125 series

    MOX125 series

    • Current Rating: 1A AC, DC
    • Voltage Rating: 125V AC,DC
    • Operating Temp: -40℃~+85℃
    • Insulation Resistance: 100MΩ/min.
    • Dielectric Withstanding Voltage: 250V AC/ minute
    • Contact Resistance: 20mΩ/max.

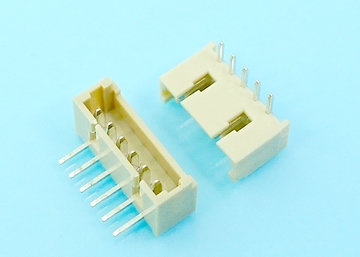

  • 1.25mm Pitch Single Row Wafer, 180° DIP

    LW-MX125S-XX-D 1.25mm Pitch Single Row Wafer, 180° DIP

    Material

    • Wafer: Nylon46, UL94V-0.
    • Pin: High Strength, Brass
    • With Tin over Nickel plated

    Specifications

    • Current Rating: 1A AC, DC
    • Voltage Rating: 125V AC,DC
    • Operating Temp.: -40°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 250V AC/ minute
    • Contact Resistance: 20mΩ/ max.

    Inquiry Info. PDF

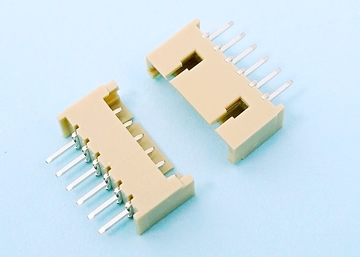

  • 1.25mm Pitch Single Row Wafer ,90° DIP

    LW-MX125R-XX-D 1.25mm Pitch Single Row Wafer ,90° DIP

    Material

    • Wafer: Nylon46, UL94V-0.
    • Pin: High Strength, Brass
    • With Tin over Nickel plated


    Specifications

    • Current Rating: 1A AC, DC
    • Voltage Rating: 125V AC,DC
    • Operating Temp.: -40°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 250V AC/ minute
    • Contact Resistance: 20mΩ/ max.

    Inquiry Info. PDF

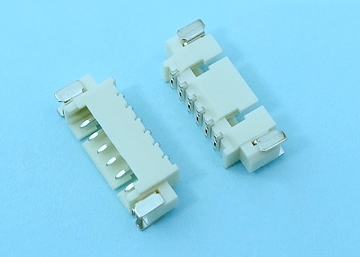

  • 1.25mm Pitch Single Row Wafer, 180° SMT

    LW-MX125S-XX-SX 1.25mm Pitch Single Row Wafer, 180° SMT

    Material

    • Wafer: Nylon46, UL94V-0.
    • Pin: High Strength, Brass
    • With Tin over Nickel plated


    Specifications

    • Current Rating: 1A AC, DC
    • Voltage Rating: 125V AC,DC
    • Operating Temp.: -40°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 250V AC/ minute
    • Contact Resistance: 20mΩ/ max.

    Inquiry Info. PDF

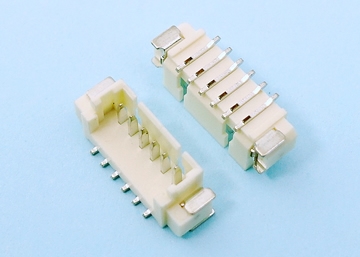

  • 1.25mm Pitch Single Row Wafer , 90° SMT

    LW-MX125R-XX-SX 1.25mm Pitch Single Row Wafer , 90° SMT

    Material

    • Wafer: Nylon46, UL94V-0.
    • Pin: High Strength, Brass
    • With Tin over Nickel plated


    Specifications

    • Current Rating: 1A AC, DC
    • Voltage Rating: 125V AC,DC
    • Operating Temp.: -40°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 250V AC/ minute
    • Contact Resistance: 20mΩ/ max.

    Inquiry Info. PDF

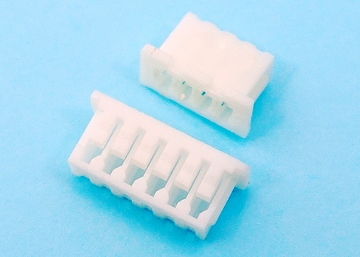

  • 1.25mm Pitch Single Row Crimp Terminal Housing

    LH-MX125-XX 1.25mm Pitch Single Row Crimp Terminal Housing

    Specifications
    Electrical

    • Current Rating: 1A AC, DC
    • Voltage Rating: 125V AC,DC
    • Operating Temp.: -20°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 250V AC/ minute
    • Contact Resistance: 20mΩ/ max.


    Material

    • Material: Nylon66, UL94V-0

    Inquiry Info. PDF

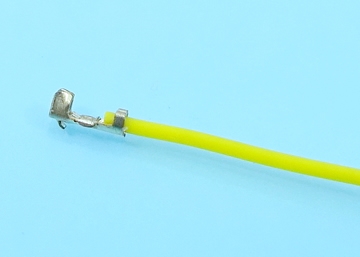

  • 1.25mm Pitch Wire-to-Board Terminal

    LT-MX1251F-PS 1.25mm Pitch Wire-to-Board Terminal

    Specifications
    Electrical

    • Current Rating: 1A AC, DC.
    • Voltage Rating: 100V AC,DC.
    • Operating Temp: -25°C ~ +85°C.
    • Insulation Resistance: 500MΩ/ min.
    • Dielectric Withstanding Voltage: 500V AC/ min.
    • Contact Resistance: 20mΩ/ max.


    Material

    • Terminal maetrial: Phosphor Bronze/ Tin-plated.
    • Wire Range: 28 to 32AWG.

    Inquiry Info. PDF
