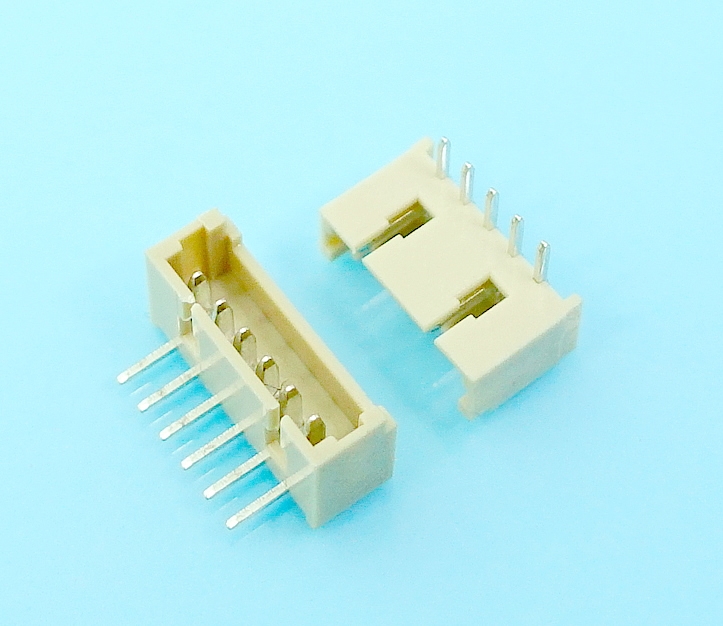

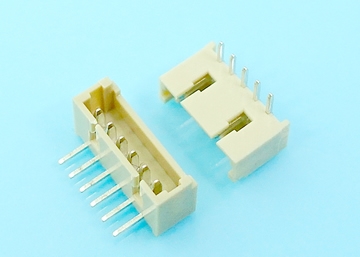

Product Wire To Board Connectors Wire to Board Connectors 1.25mm Pitch MOX125 series LW-MX125R-XX-D 1.25mm Pitch Single Row Wafer ,90° DIP Material Wafer: Nylon46, UL94V-0. Pin: High Strength, Brass With Tin over Nickel plated Specifications Current Rating: 1A AC, DC Voltage Rating: 125V AC,DC Operating Temp.: -40°C ~ +85°C Insulation Resistance: 100MΩ/ min. Dielectric Withstanding Voltage: 250V AC/ minute Contact Resistance: 20mΩ/ max. PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
