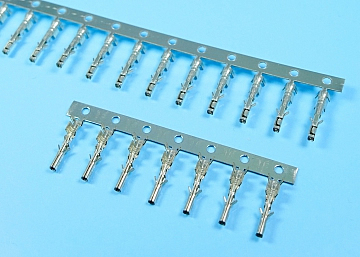

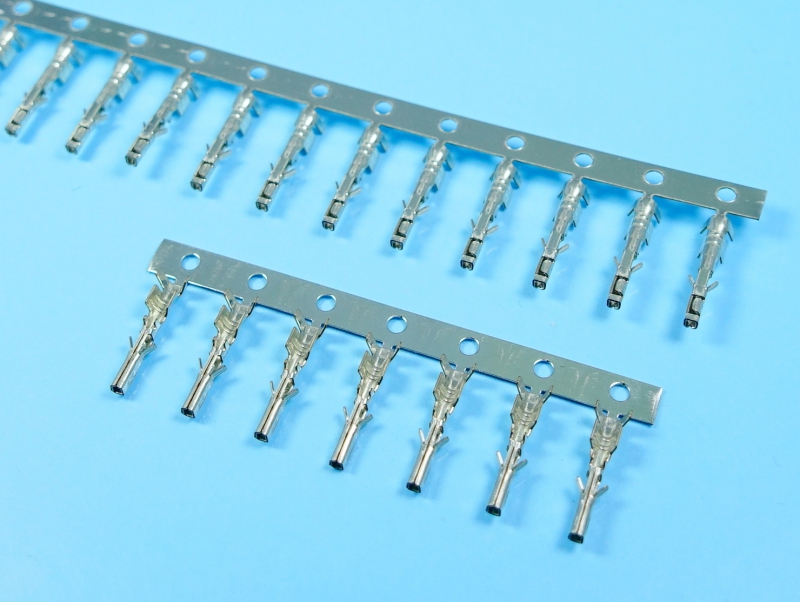

LT-MF300__F___-PS 3.0mm Pitch Female Crimp Terminal

Specifications

• Material: Phosphor bronze
• Used in LH-MF300M-__ series housing
• Wire range: #20 ~ #30 AWG
• Thickness: 0.2mm
• Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
• Voltage rating: 250V AC(RMS) or DC
• Contact resistance: 10mΩMax.
• Dielectric strength: 1500V AC/minute
• Temperature rise: 30°C max. (carry rated current load)
