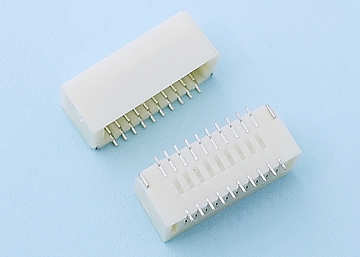

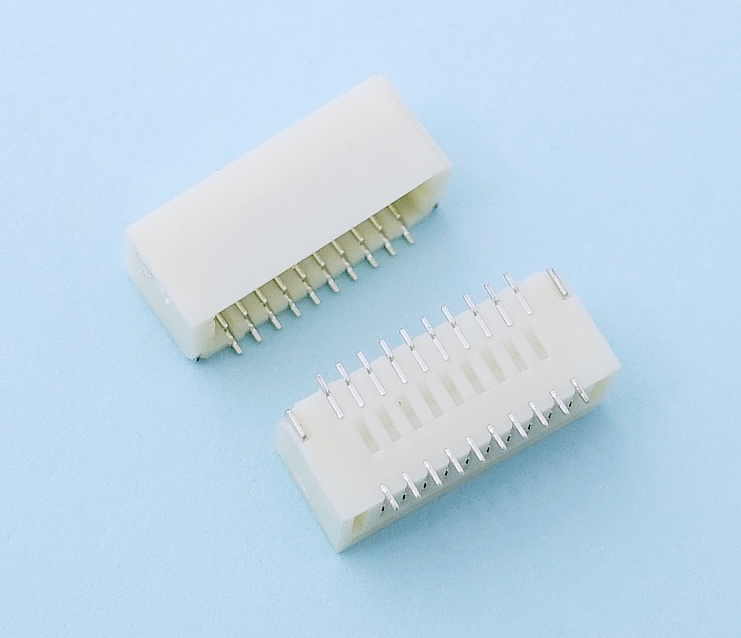

LW-SHD100R-2 x XX-S 1.0mm Pitch Dual Row Wafer , 90° SMT

Specifications
Electrical

• Voltage Rating: 50VAC DC.
• Contact Rating: 1.0A AC DC (AWG 28).
• Contact Resistance: Initial value/20 mΩ max; After environmental testing/40 mΩ max.
• Insulator Resistance: 100 MΩ min.
• Temperature Range: -25°C to +85°C.
• Withstanding voltage: 500V AC/minute.


Material and Finish

• Insulator: Nylon 6T, UL94V-0
• Insulator Color: Natural.
• Contact: Phosphor Bronze, Tin-Plated.
• Solder tad: Brass, Copper-undercoated, Tin-Plated.n-Plated.
