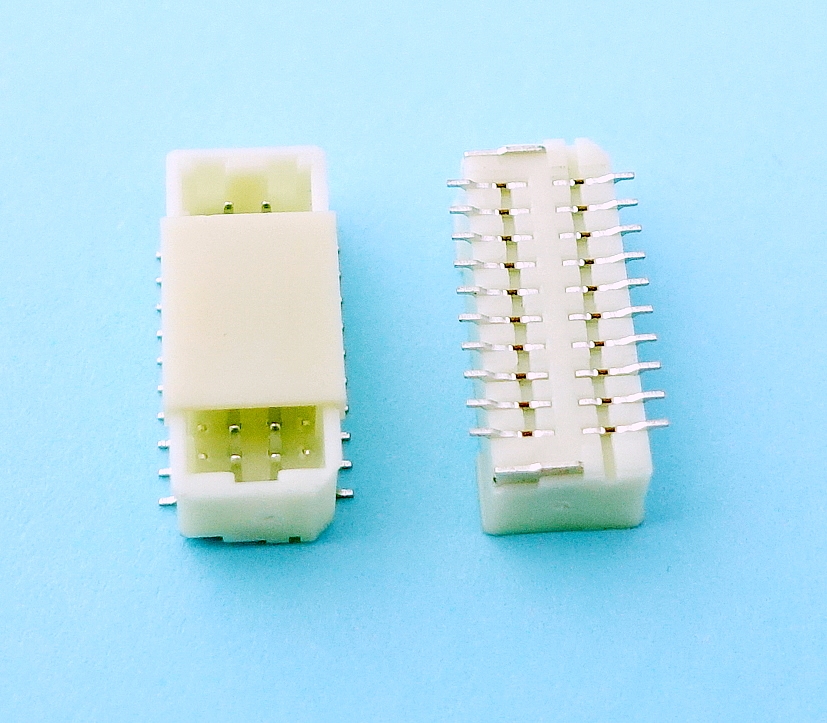

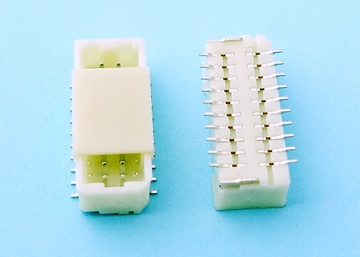

LW-SHD100S-2 x XX-SX 1.0mm Pitch Dual Row Wafer, 180° SMT (CAP)

Specifications
Electrical

• Voltage Rating: 50V(AC)
• Current Rating: 1.0A
• Contact Resistance: 20mΩ max.
• Dielectric Withstanding Voltage: 500V AC/1min.
• Insulation Resistance: 100MΩ min.


Material

• Circuits: 20,30,40,50
• Insulator: High Tempera Ture Plastic UL94V-0
• Color: Natural
• Contact: Phosphor Bronze, Tin-Plated
• Plating: Tin plated.
• Temperature Range: -25°C ~ +85°C.
