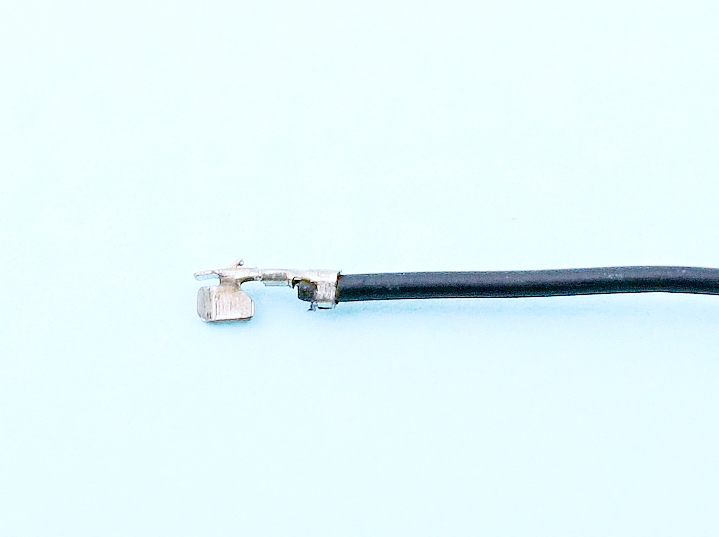

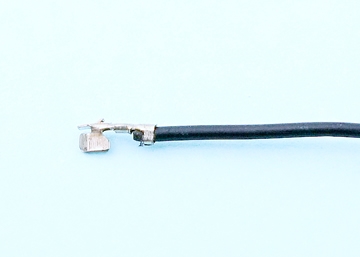

Product Wire To Board Connectors Wire to Board Connectors 1.0mm Pitch SH(D)100 series LT-SH1001-PS 1.0mm Pitch Wire-to-Board Terminal SpecificationsElectrical Current Rating: 1A AC, DC Voltage Rating: 50V AC/ max. Operating Temp.: -25°C ~ +85°C Insulation Resistance: 100MΩ/ min. Dielectric Withstanding Voltage: 500V AC/ min. Contact Resistance: 20mΩ/ max. Material Terminal maetrial: Phosphor Bronze/ Tin-plated Wire Range: 28 to 32AWG PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
