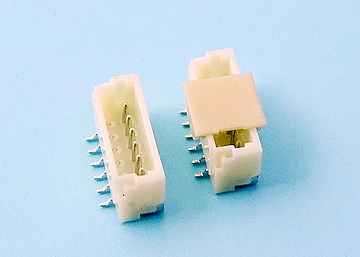

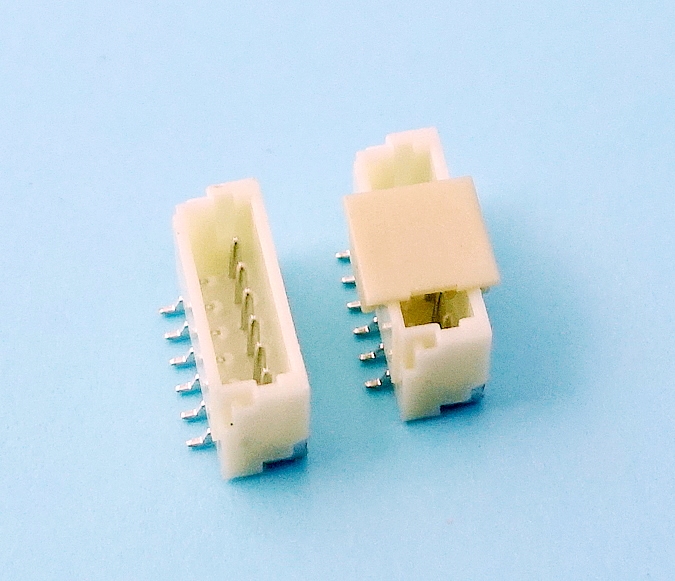

Product Wire To Board Connectors Wire to Board Connectors 1.0mm Pitch SH(D)100 series LW-SH100S-XX-SXX 1.0mm Pitch Single Row Wafer,180° SMT SpecificationsElectrical Voltage Rating: 50V(AC) Current Rating: 1.0A Contact Resistance: 20mΩ max. Dielectric Withstanding Voltage: 500V AC/1min. Insulation Resistance: 100MΩ min. Material and Finish Insulator: Nylon 6T, UL94V-0 Color: Natural Temperature Range: -40°C~+105°C Contact: Phosphor Bronze, Tin-Plated PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
