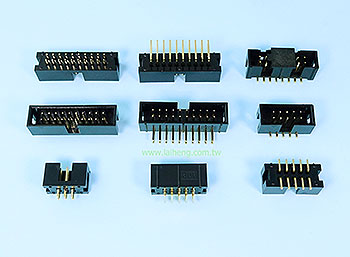

2.54mm
Specifications
Material And Finish- Housing: Thermoplastic, UL94V-0, Color-Black.
- Terminal: Sq 0.64mm, Brass, Gold Plating.
Electrical Characteristics
- Current Rating: 3 Amp. Max.
- Dielectric Withstanding Voltage: 1000V AC RMS for 60 Seconds.
- Insulator Resistance: 1000M Ohms Min at 1000V DC.
Mechanical Characteristics
- Operation Temperature: -40°C to +105°C.
-

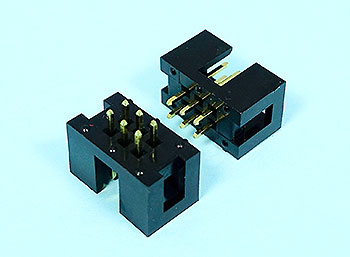

LBH254S-XX 2.54 mm Pitch Box Header H:9.1 Straight Type
Specifications:
- Current Rating: 3Amps.
- Insulator Resistance: 1000 Megohms min.
- Dielectric Withstanding: AC 500V.
- Operating Temperature: -40°C ~ +105°C.
- Contact Material: Brass.
- Insulator Material: P.B.T, UL94V-0.
- Finish: Gold Flash all over.
-

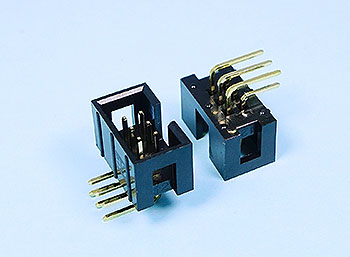

LBH254R-XX 2.54 mm Pitch Box H:9.1 Header Right Angle Type
Specifications:
- Current Rating: 3Amps.
- Insulator Resistance: 1000 Megohms min.
- Dielectric Withstanding: AC 500V.
- Operating Temperature: -40°C ~ +105°C.
- Contact Material: Brass.
- Insulator Material: P.B.T, UL94V-0.
- Finish: Gold Flash all over.
-

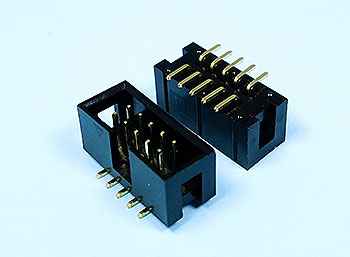

LBH254T-XX 2.54 mm Pitch Box Header H:9.1 SMT(9.6) Type
Specifications:
- Current Rating: 3Amps.
- Insulator Resistance: 1000 Megohms min.
- Contact Resistance:20m ohms max.
- Dielectric Withstanding: AC 600V.
- Operating Temperature: -40°C ~ +105°C.
- Max.Processing Temp:260°C for 5 seconds.
- Contact Material: Brass.
- Insulator Material: Nylon-6T, UL94V-0,Color-Black
- Finish: Gold Flash All Over.
-

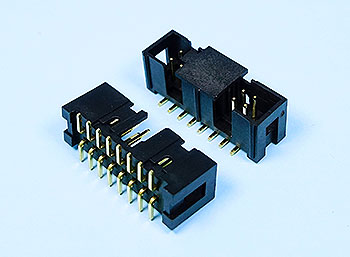

LBHN254T-XX-C 2.54 mm Pitch Box Header H:9.9 SMT(11.18) Type (3M),CAP
Specifications:
- Current Rating: 3 Amps.
- Insulator Resistance: 5000 Megohms Min.
- Dielectric Withstanding: AC 1000 V.
- Operating Temperature: -40°C ~ +105℃.
Material:
- Contact: Copper Alloy.
- Contact Plating: Gold Flash all over.
- Insulation: PA6T, UL94V-0.
- Insulation Color: Black.
