• 1.27mm

    1.27mm

    Specifications

    Material And Finish

    • Housing: Thermoplastic, UL94V-0, Color-Black.
    • Terminal: Sq 0.40mm, Brass, Gold Plating.
      　

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 600V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

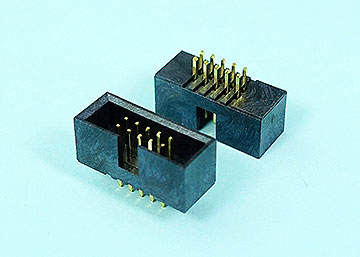

  • 1.27 mm Pitch Box Header H:5.4 Straight Type

    LBH127S-XX 1.27 mm Pitch Box Header H:5.4 Straight Type

    Specifications

    Material And Finish

    • Housing: LCP (UL94V-0), Black.
    • Terminal: Sq. 0.4mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 600V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

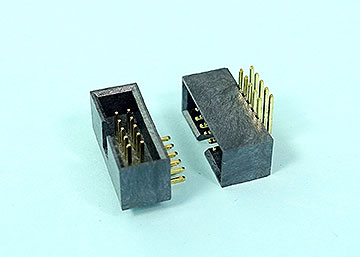

  • 1.27 mm Pitch Box Header H:5.4 Right Angle Type

    LBH127R-XX 1.27 mm Pitch Box Header H:5.4 Right Angle Type

    Specifications

    Material And Finish

    • Housing: LCP (UL94V-0), Black.
    • Terminal: Sq. 0.4mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 600V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

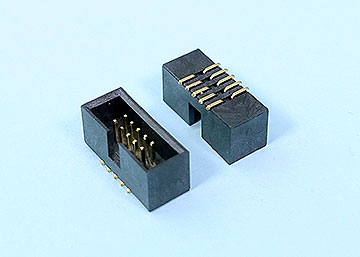

  • 1.27 mm Pitch Box Header H:5.4 SMT(5.5) Type

    LBH127T-XX 1.27 mm Pitch Box Header H:5.4 SMT(5.5) Type

    Specifications

    Material And Finish

    • Housing: LCP (UL94V-0), Black.
    • Terminal: Sq. 0.4mm Copper Alloy, Gold Plating.

    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstand Voltage: 600V AC RMS for 60Seconds.
    • Insulation Resistance: 1000M Ohms Min. at 500V DC.
      　

    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info.

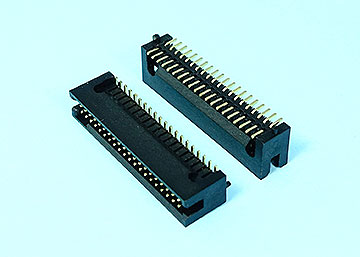

  • 1.27 mm Pitch Box Header H:5.7 SMT(5.5) Type, With Peg

    LBHN127T-XX-PH5.7 1.27 mm Pitch Box Header H:5.7 SMT(5.5) Type, With Peg

    Specifications:

    • Voltage Rating: 1 Amps.
    • Current Rating: 1000 Megohms Min.
    • Contact Resistance: AC 500 V.
    • Dielectric Withstanding Voltage: -40°C ～ +105℃.
    • Insulation Resistance: 230°C for 60 seconds.
      　

    Material:

    • Contact: Copper Alloy.
    • Contact Plating: Gold Flash all over.
    • Insulation:Nylon-6T, UL94V-0.
    • Insulation Color: Black.

    Inquiry Info.

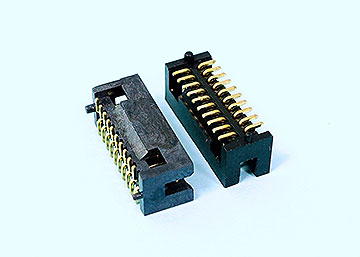

  • 1.27 mm Pitch Box Header H:7.3 SMT(6.0) Type, With Peg

    LBHN127T-XX-PH7.3 1.27 mm Pitch Box Header H:7.3 SMT(6.0) Type, With Peg

    Inquiry Info.
