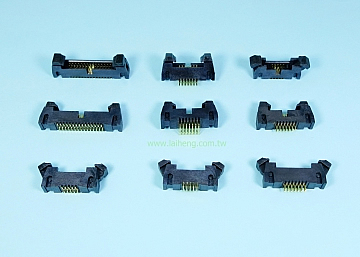

• 1.27mm

    1.27mm

    Specifications

    Material And Finish

    • Housing: LCP, UL94V-0, Color-Black.
    • Terminal: Sq 0.40mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 600V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

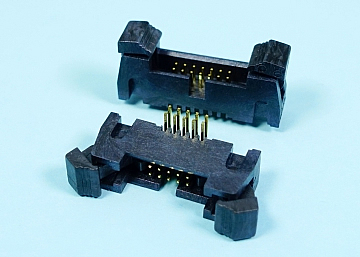

  • 1.27 mm Pitch Box Header With Latches Straight Type

    LBHE127S-XX 1.27 mm Pitch Box Header With Latches Straight Type

    Specifications

    Material And Finish

    • Housing: LCP, UL94V-0, Color-Black.
    • Terminal: Sq 0.40mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 600V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF

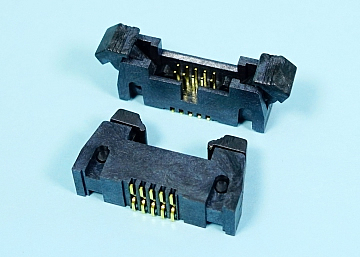

  • 1.27 mm Pitch Box Header With Latches Right Angle Type

    LBHE127R-XX 1.27 mm Pitch Box Header With Latches Right Angle Type

    Specifications

    Material And Finish

    • Housing: LCP, UL94V-0, Color-Black.
    • Terminal: Sq 0.40mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 600V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF

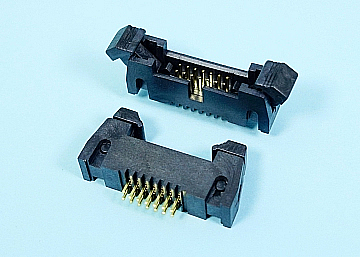

  • 1.27 mm Pitch Box Header With Latches SMT Type

    LBHE127T-XX 1.27 mm Pitch Box Header With Latches SMT Type

    Specifications

    Material And Finish

    • Housing: LCP, UL94V-0, Color-Black.
    • Terminal: Sq 0.40mm, Copper Alloy, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 600V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF
