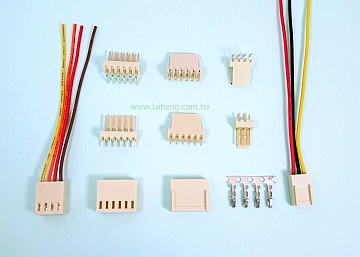

• MX 254 Series

    MX 254 Series

    Specifications

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25℃ ~ + 85℃
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage: 1000V AC/minute
    • Terminal Material: Brass/ Tin-plated
    • Material: Nylon 66, UL94V-2

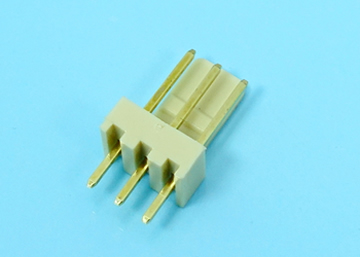

  • 2.54mm Pitch Single Row Wafer, 180° DIP

    LW-MX254S-XX 2.54mm Pitch Single Row Wafer, 180° DIP

    Inquiry Info.

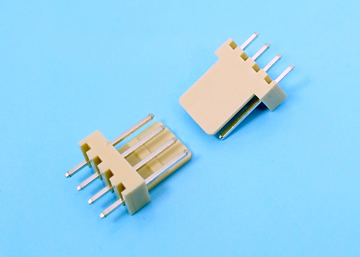

  • 2.54mm Pitch Single Row Wafer , 90° DIP

    LW-MX254R-XX 2.54mm Pitch Single Row Wafer , 90° DIP

    Specifications

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250 AC Maximum
    • Operating Temp: -25°C ~ + 85°C
    • Contact Resistance: 20MΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage:1000V AC/minute
    • Terminal Material: Brass/ Gold-plated
    • Material: Nylon 66, UL94V-2

    Inquiry Info. PDF

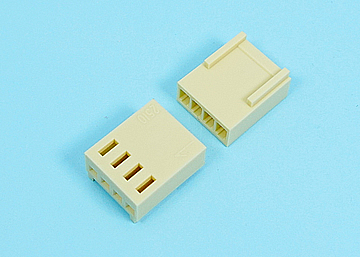

  • 2.54mm Pitch Single Row Housing

    LH-MX254-XX 2.54mm Pitch Single Row Housing

    Specifications

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250 AC Maximum
    • Operating Temp: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage:1000V AC/minute
    • Material: Nylon 66, UL94V-2

    Inquiry Info. PDF

共計 3 項
