90ﾟ Type
-

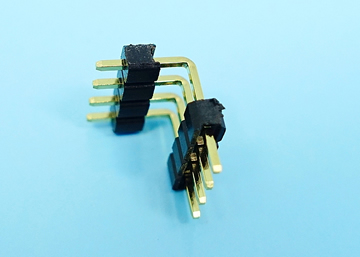

LP/H254RGN a C c／b -2xXX 2.54mm Pin Header H:1.5 W:5.08 Dual Row Down Angle DIP Type
Specifications
- Current rating : 3A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -55°C to +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester, UL94V-0, NYLON 6T
- Plating : All Gold or Tin
-

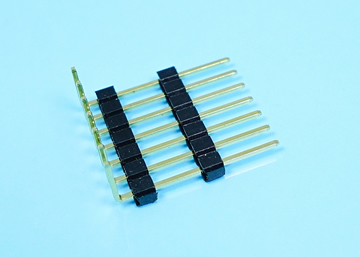

LP/H254UGX a A d／c A b -1xXX 2.54mm Pin Header H:2.54 W:2.54 Single Row Dual Base Up Angle DIP Type
Specifications
- Current rating : 3A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester, UL94V-0, NYLON 6T or PBT
- Plating : All Gold or Tin
-

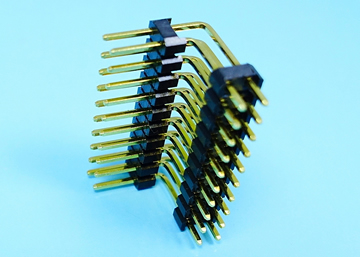

LP/H254UGX a A d／c A b -2xXX 2.54mm Pin Header H:2.54 W:5.08 Dual Row Dual Base Up Angle DIP Type
Specifications
- Current rating : 3A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester, UL94V-0, NYLON 6T or PBT
- Plating : All Gold or Tin
-
LP/H254RGX a A d A c／b -1xXX 2.54mm Pin Header H:2.54 W:2.54 Single Row Dual Base Down Angle DIP Type
Specifications
- Current rating : 3A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester, UL94V-0, NYLON 6T or PBT
- Plating : All Gold or Tin
-
LP/H254RGX a A d A c／b -2xXX 2.54mm Pin Header H:2.54 W:5.08 Dual Row Dual Base Down Angle DIP Type
Specifications
- Current rating : 3A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester, UL94V-0, NYLON 6T or PBT
- Plating : All Gold or Tin
