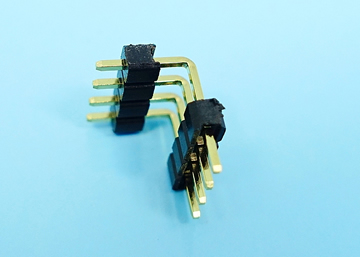

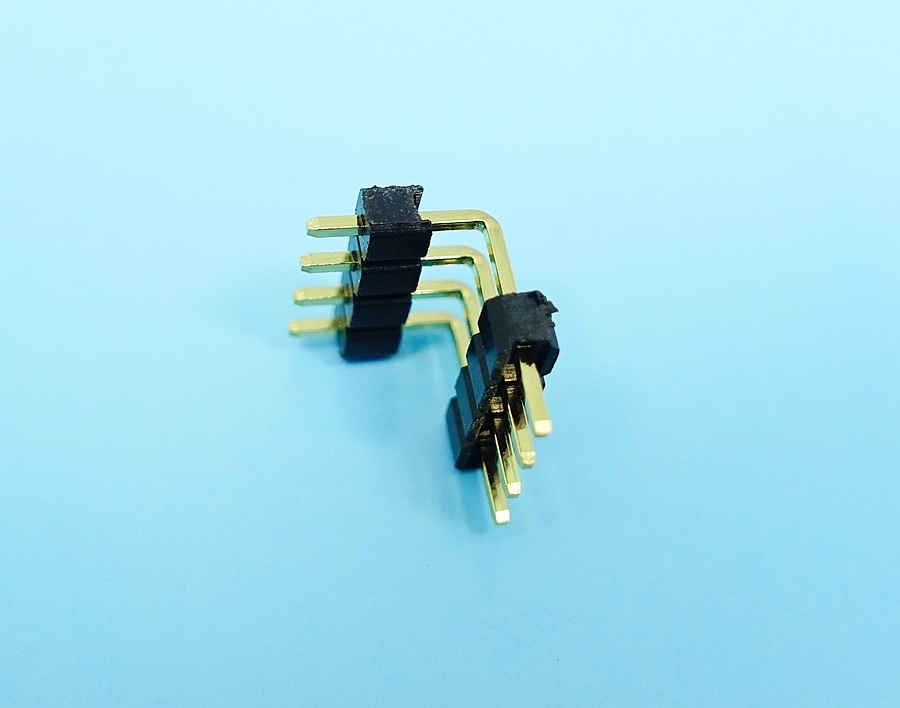

• LP/H254UGX a A d／c A b -1xXX 2.54mm Pin Header H:2.54 W:2.54 Single Row Dual Base Up Angle DIP Type

    LP/H254UGX a A d／c A b -1xXX 2.54mm Pin Header H:2.54 W:2.54 Single Row Dual Base Up Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin
