• 180ﾟ Type

    180ﾟ Type

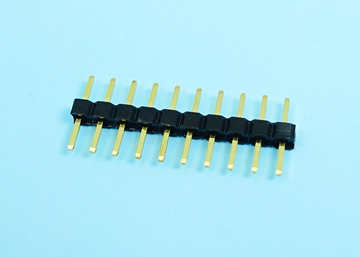

  • 2.0mm Pin Header H:2.0 W:2.0 Single Row Straight DIP Type

    LP/H200SGX a A b -1xXX 2.0mm Pin Header H:2.0 W:2.0 Single Row Straight DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

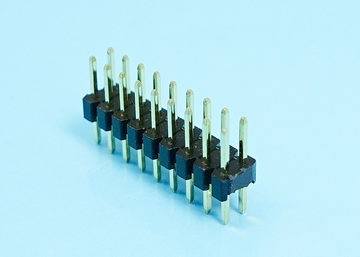

  • 2.0mm Pin Header H:2.0 W:4.0 Dual Row Straight DIP Type

    LP/H200SGX a A b -2xXX 2.0mm Pin Header H:2.0 W:4.0 Dual Row Straight DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

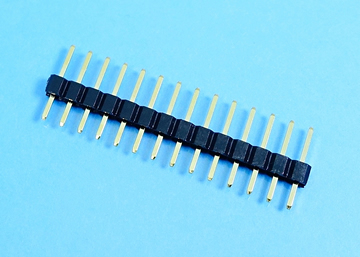

  • 2.0mm Pin Header H:1.5 W:2.0 Single Row Straight DIP Type

    LP/H200SGN a B b -1xXX 2.0mm Pin Header H:1.5 W:2.0 Single Row Straight DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

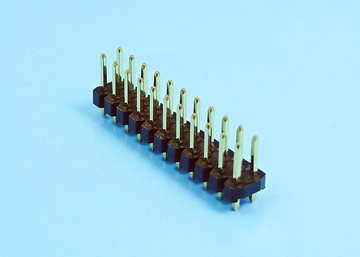

  • 2.0mm Pin Header H:1.5 W:4.0 Dual Row Straight DIP Type

    LP/H200SGN a B b -2xXX 2.0mm Pin Header H:1.5 W:4.0 Dual Row Straight DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

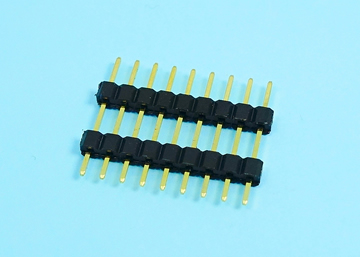

  • 2.0mm Pin Header H:2.0 W:2.0 Single Row Dual Base Straight DIP Type

    LP/H200SGX a A c A b -1xXX 2.0mm Pin Header H:2.0 W:2.0 Single Row Dual Base Straight DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

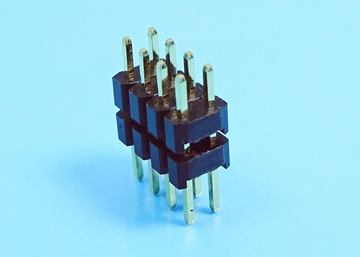

  • 2.0mm Pin Header H:2.0 W:4.0 Dual Row Dual Base Straight DIP Type

    LP/H200SGX a A c A b -2xXX 2.0mm Pin Header H:2.0 W:4.0 Dual Row Dual Base Straight DIP Type

    Specifications

    • Current rating : 1A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

共計 6 項
